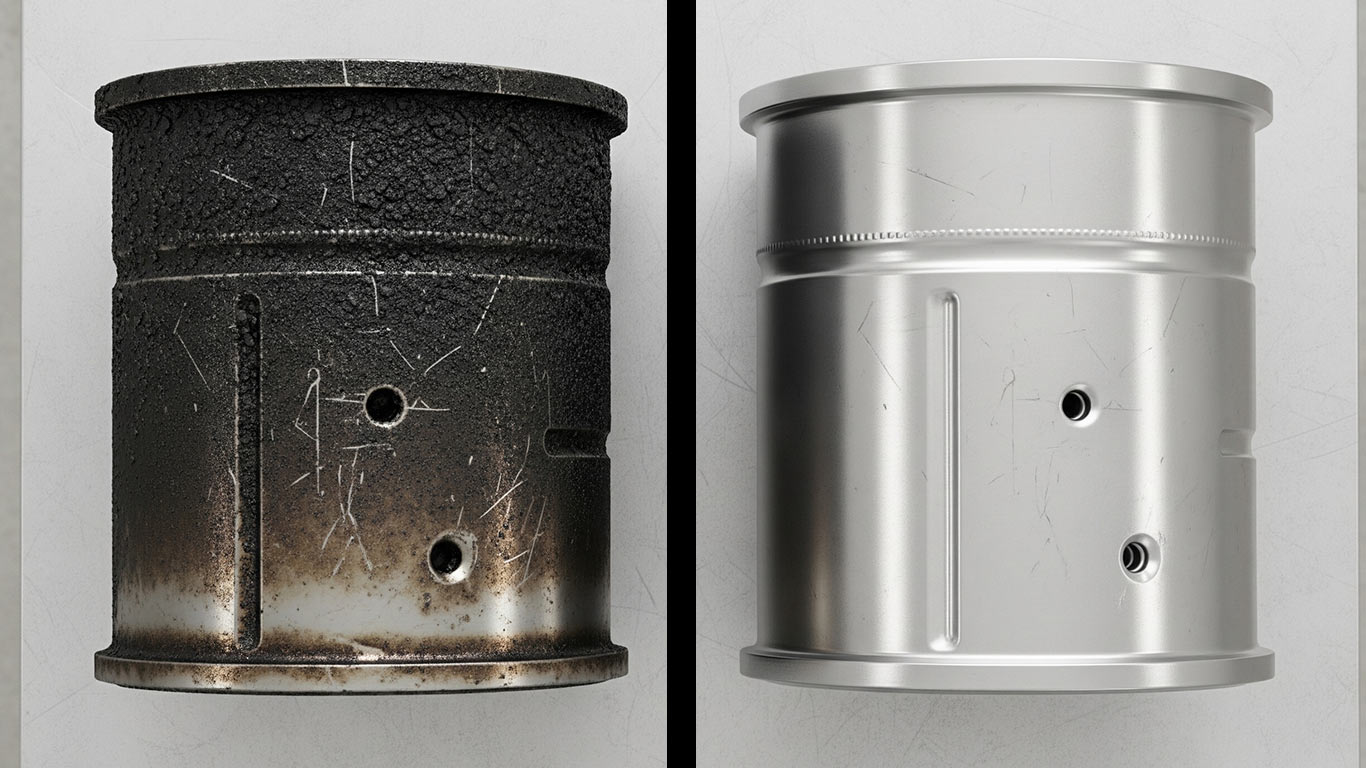

Hastelloy Laser Cleaning
Hastelloy C-276 is built for the most corrosive chemical environments — HCl, H₂SO₄, chlorine service — and laser cleaning has to respect that purpose. Bulk 1064 nm absorption is low at 32%, the lowest of the major nickel superalloys, but the oxide scale and chromate deposits that form during acid service absorb at 50–60%. That differential is what makes selective laser cleaning possible: the contamination removes itself while the base metal stays below its 1330°C solidus.
How to Laser Clean Hastelloy
1Identify Hastelloy grade and contamination
- C-276 (16% Mo) and C-22 (13% Mo / 3% W) respond similarly to laser cleaning, but process fluid history determines whether oxide scale includes MoO₃ or chromate phases that affect fume handling requirements.
- For chemical processing equipment, identify the service environment — scale from sulfuric acid service differs from scale formed in chloride-bearing process fluids, and each may require a different starting energy level within the 1.2–2.0 J/cm² window.
2Test on a small area first
- MoO₃ volatilization above 795°C surface temperature is the specific failure mode — operating above the 2.0 J/cm² cleaning ceiling risks exceeding this threshold; the validated starting point is 1.5 J/cm² with two passes at 40–50% overlap.
- Alloy re-oxidation is the secondary failure risk above the cleaning ceiling — confirm the cleaned surface has returned to passive chromium oxide state before accepting parameters for production cleaning on the full component.
3Contact Z-Beam for assessment
- Z-Beam serves Bay Area chemical processing plants, semiconductor equipment manufacturers, and industrial scrubber fabricators requiring oxide and weld heat tint removal from Hastelloy C-276 and C-22 components.
- Each Hastelloy scope produces an oxide characterization record and Cal/OSHA fume pathway confirmation, documenting MoO₃ ventilation controls and post-clean corrosion resistance verification for the specific grade and service environment.
Regulatory Standards
Hastelloy dust contains nickel and chromium – both are respiratory sensitizers and possible carcinogens (nickel IARC Group 1, chromium Group 3); hexavalent chromium Cr(VI) is designated a human carcinogen per OSHA Chromium. Use HEPA extraction (H13 or H14) and P100 respirators. Wear nitrile gloves and long sleeves. Follow ANSI Z136.1 for laser safety and OSHA 29 CFR 1926.95 for PPE. Laser eyewear requires OD 5+ for 1064 nm. For chemical processing equipment, cleaning generates nickel hexafluoride if fluorine was present – test for fluorine before cleaning.
ANSI
ANSI Z136.1 - Safe Use of Lasers
IEC
IEC 60825 - Safety of Laser Products
OSHA
OSHA 29 CFR 1926.95 - Personal Protective Equipment
FAQ
Is Hastelloy passivation needed after laser cleaning to restore its oxide layer?
Passivation after laser cleaning is recommended for Hastelloy C-276 when the alloy will be returned to aggressive chemical service, because laser cleaning removes surface contaminants but does not fully re-establish the uniform chromium-molybdenum oxide passive film. ASTM A380-17 chemical passivation procedures or electrochemical passivation per AMPP SP21511-1 guidance are the reference standards our team consults to specify the correct treatment for the service environment. Post-passivation surface analysis—typically XPS or electrochemical polarization testing—confirms passive film integrity before return to service in environments containing chlorides or strong oxidizers.
What laser settings are recommended for Hastelloy cleaning?
The recommended operating range for Hastelloy C-276 cleaning is 1.2–2.0 J/cm² at 1064 nm, 100 ns pulse — Z-Beam operates at 1.5 J/cm² for light NiO oxide scale and 1.7 J/cm² for heavy weld heat tint, both maintaining ≥20% margin below the 8.5 J/cm² base-metal damage threshold (Surface & Coatings Technology, 2018). Two passes at 100 W, 50 kHz, 1000 mm/s with 60% overlap removes chromate and NiO/MoO3/Cr2O3 scale without compromising the alloy's corrosion resistance in subsequent chemical service.
What does laser cleaning typically cost for Hastelloy components?
On-site laser cleaning for Hastelloy runs $250–$350/hr with no consumables, no chemical disposal, and no secondary prep after cleaning. Most jobs are quoted by surface area or part count after a quick site assessment — call or email for a same-week estimate. Monthly service agreements are available at lower per-hour rates for production volumes.
Does Hastelloy need passivation after laser cleaning for chemical processing?
ASTM B622 sheet and B619 welded pipe are the common Hastelloy C-276 product forms encountered in industrial cleaning, and both tolerate laser energy levels of 0.8–1.5 J/cm² without heat-affected sensitization. However, for Hastelloy components in aggressive chemical environments (concentrated acids, chloride service above 100°C), post-cleaning passivation per ASTM A380 may be specified as a precaution. The decision depends on the specific grade (C-22 vs. C-276 have different Mo content) and service environment. Z-Beam provides cleaning documentation sufficient for ASTM passivation verification records.
What are Cal/OSHA limits for iron/metal oxide particulate in laser cleaning?
Cal/OSHA §5155 sets a nickel compounds TWA of 0.05 mg/m³ and a Cr(VI) TWA of 0.005 mg/m³ — the two most restrictive airborne limits when laser cleaning Hastelloy alloys containing both elements. Chromium VI from the alloy's 16% Cr content adds a third limit — 5 ug/m3 TWA under Cal/OSHA Section 1532.2, with a 2.5 ug/m3 action level. HEPA H13/H14 extraction at capture velocity 0.5 m/s or greater is required at all cleaning speed. Molybdenum fume (MoO3, regulated at 5 mg/m3 TWA) spikes above the 795 deg-C volatilization threshold — limiting continuous passes to two per area is the primary control.
Technical Data
- This material (highlighted)
- Other materials in this group
- Recommended fluence (1.5 J/cm²)
Machine Settings
Laser cleaning Hastelloy (C-276 and C-22 grades) at 100 W, 50 kHz, 1000 mm/s cleaning speed, 60% overlap, and 2 passes removes heat-scale and process deposits effectively. Hastelloy C-276 contains 57% Ni, 16% Cr, 16% Mo, 4% W — the molybdenum and tungsten additions create more complex cleaning fume than standard Ni-Cr alloys.
Laser-Material Interaction
Hastelloy C-276 cleaning operates on a 0.65 J/cm² process window — the narrowest among major nickel superalloys — because the alloy's elevated molybdenum content holds bulk absorption to just 32% at 1064 nm. That low base-metal absorption is what makes selective cleaning possible — chromate and oxide deposits absorb 50–60%, so the laser couples to the contamination layer rather than the surface. Cleaning onset is 2.15 J/cm² and base-metal damage begins at 2.8 J/cm².
Material Characteristics
Laser cleaning removes oxide scale and chromate deposits from Hastelloy C-276 selectively because the contamination layer absorbs 50–60% of 1064 nm energy while the bare alloy reflects most of the beam at 32% absorption — the lowest among major nickel superalloys. That absorption differential is self-limiting: once the contamination clears, the clean alloy couples laser energy far less efficiently, naturally narrowing the effective operating window and protecting the base metal.
Technical Reference — Hastelloyliterature-sourced
| Parameter | Value |
|---|---|
| Cleaning fluence range | 1.2–2.0 J/cm² (±±0.3 J/cm²) |
| Damage threshold | 8.5 J/cm² (±±0.5 J/cm²) |
| Operating point (Z-Beam) | 1.5 J/cm² (light oxidation) / 1.7 J/cm² (heavy oxide) (±±0.2 J/cm²) |
| Cal/OSHA Nickel fume PEL | 0.1 mg/m³ TWA |
| Cal/OSHA Molybdenum fume PEL | 5 mg/m³ TWA |
| Cal/OSHA Chromium VI PEL | 5 µg/m³ TWA |
When Laser Cleaning Does Not Work
| Condition | Consequence |
|---|---|
| Cr(VI) fume exposure without adequate LEV — Hastelloy contains 16% CrHard stop | Cr(VI) aerosol generated during laser ablation of chromium-containing oxides exceeds Cal/OSHA PEL of 5 µg/m³ without engineering controls |
| Fluence exceeds 8.5 J/cm² on clean base metal (e.g., after contamination removal on first pass)Hard stop | Substrate melting/recast layer on Hastelloy surface — corrosion resistance compromise in chemical service environments |
| Substrate temperature exceeds 795°C (MoO3 melting/volatilization point) during cleaningHard stop | MoO3 volatilizes to gaseous molybdenum trioxide — acute inhalation hazard; LEV failure or insufficient capture velocity creates exceeds-PEL exposure |
Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)
| Contaminant | BAAQMD Permit |
|---|---|
| Nickel Fume (NiO Particles From Ni-base Alloy Ablation) | Not required |
| Molybdenum Fume — Soluble (MoO3, Water-soluble At Process Temp) | Not required |
| Chromium VI (Cr(VI)) Aerosol From Cr2O3/CrO3 Ablation | Not required |
| Iron Oxide / Metal Oxide Particulate (proxy — General Particulate) | Not required |
Process Window — Hastelloy
Netalux Kamino 300, 1064nm fiber, 100ns pulse
| Surface Condition | Floor (J/cm²) | Ceiling (J/cm²) | Window (J/cm²) | Safety % |
|---|---|---|---|---|
| Light oxidation / surface contamination (NiO + thin Cr2O3 scale) | 1.2 | 8.5 | 7.3 | 20% |
| Moderate-to-heavy oxide buildup / weld heat tint / chemical-service scale (NiO + MoO3 + Cr2O3) | 1.5 | 8.5 | 7 | 20% |
Sources(7 references)
Sources(7 references)
"The employer shall ensure that no employee is exposed to an airborne concentration of chromium (VI) in excess of 5 micrograms per cubic meter of air (5 µgm/m3), calculated as an 8-hour time-weighted average (TWA)."
Occupational Safety and Health Administration. Occupational Safety and Health Administration. 29 CFR 1910.1026 — Chromium (VI). U.S. Department of Labor (2006, amended 2019). "Passivation is the process by which a stainless steel will spontaneously form a chemically resistant surface when exposed to air or other oxygen-containing environments."
ASTM International. ASTM International. ASTM A380/A380M-17 — Standard Practice for Cleaning, Descaling, and Passivation of Stainless Steel Parts, Equipment, and Systems. DOI: 10.1520/A0380_A0380M-17 (2017). "Chromium VI (hexavalent chromium) is the oxidized state of principal concern in occupational safety and health and the environment because of its extreme toxicity and designation as a human carcinogen."
Occupational Safety and Health Administration. Occupational Safety and Health Administration. Chromium Safety and Health Topics. U.S. Department of Labor (2024). - Nanosecond pulsed laser ablation of Inconel 718, Sci. Rep. 2024, s41598-024-81233-0. (opens in new tab)
- Monitoring laser cleaning of titanium alloys by probe beam reflection and emission spectroscopy, Applied Physics A, 2008. (opens in new tab)
- MatWeb Material Property Data — Online Materials Information Resource (opens in new tab)
- Laser cleaning process of high-pressure turbine blade: Characterization and removal of surface contaminants, Surface and Coatings Technology, 2023 (opens in new tab)
