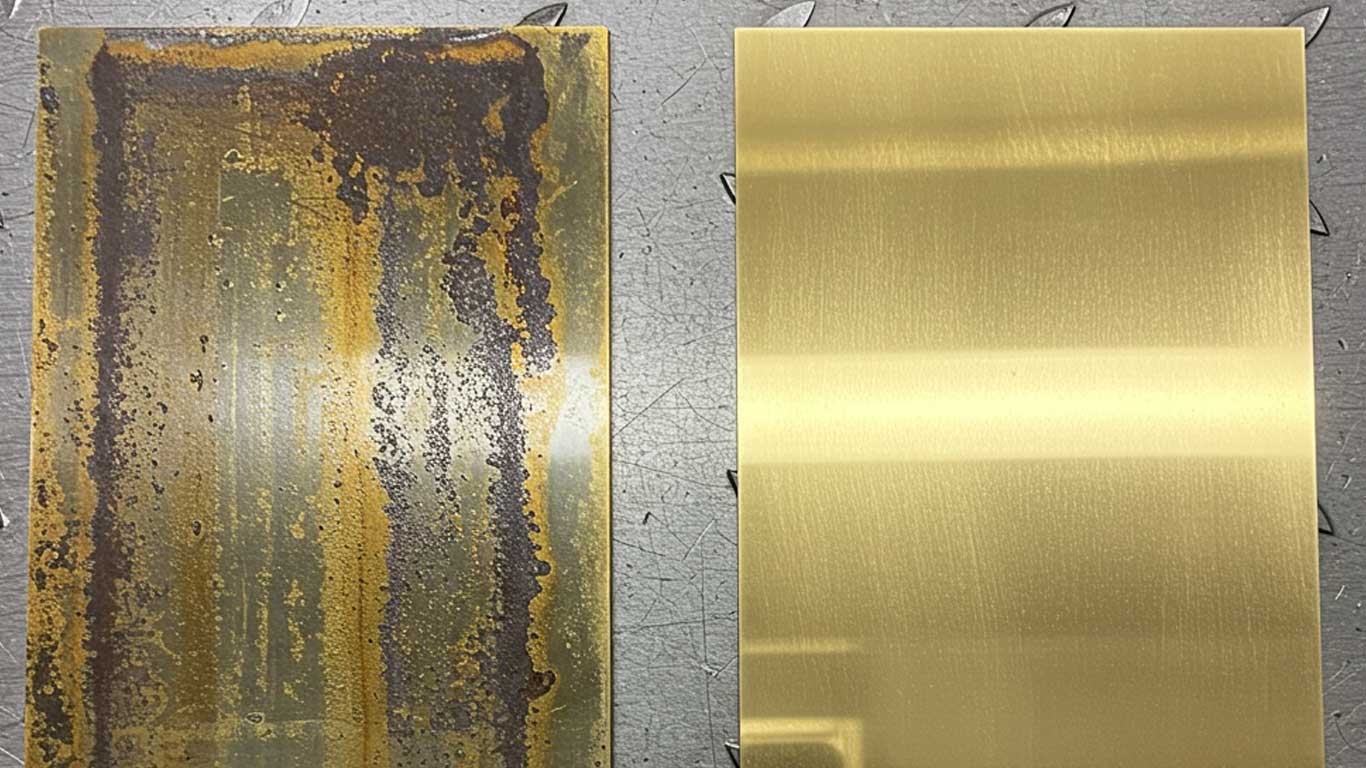

Brass surface undergoing laser cleaning showing precise contamination removal

Yi-Chun LinPh.D.Taiwan

Materials characterization for industrial surfaces

Published

Jan 6, 2026

Brass Laser Cleaning

The biggest risk in brass laser cleaning is dezincification — when surface temperature hits 907°C, zinc preferentially evaporates and leaves behind a porous, weakened matrix of residual copper. At 92% surface reflectance at 1064 nm, brass resists coupling energy efficiently, which pushes operators toward higher power just to initiate cleaning action. The solution is high cleaning speed rather than high energy: at 100 W, 30 kHz, and 1,500 mm/s with 70% overlap, two passes remove tarnish and oxide without dwelling long enough to build damaging heat. The 907°C dezincification ceiling is a hard limit on how much power can be applied before alloy composition starts to change.

How to Laser Clean Brass

1Screen alloy for lead and fume controls

Request material certification or use XRF screening to confirm lead content before any cleaning scope; C36000 free-machining brass (3.5% Pb) requires engineering controls and air monitoring under Cal/OSHA §1532.1 before mobilizing equipment.
Confirm alloy grade — C26000 cartridge brass, C36000 free-machining, or C46400 naval brass — since zinc content and lead level determine both the energy level ceiling and the fume control measures required on-site.

2Test on a small area first

Dezincification — selective zinc vaporization — begins above ~5 J/cm² on high-zinc alloys; the Z-Beam operating point of 1.5 J/cm² maintains a 67% margin below that threshold, but coupon testing first confirms the response of the specific alloy and condition.
For heritage patina preservation, conservative energy level at 0.5–1.0 J/cm² with 70% overlap and multiple passes prevents the pinking that indicates zinc volatilization — a surface change that cannot be reversed without refinishing the component.

3Contact Z-Beam for compliance assessment

Z-Beam confirms alloy grade via XRF or mill cert and verifies zinc oxide fume controls against the Cal/OSHA 5 mg/m³ TWA PEL before mobilizing — the compliance check is completed before the first clean pass, not after.
Bay Area plumbing fixture shops, marine hardware fabricators, and architectural restoration contractors receive a written compliance log with Cal/OSHA fume pathway confirmation as part of each brass cleaning scope.

Regulatory Standards

What safety standards apply to laser cleaning brass? FDA 21 CFR 1040.10 – Laser Product Performance Standards (USA). ANSI Z136.1 – Safe Use of Lasers. IEC 60825 – Safety of Laser Products (international). OSHA 29 CFR 1926.95 – Personal Protective Equipment. Brass dust contains copper and zinc – both are respiratory irritants. Use HEPA extraction. Laser eyewear: OD 5+ for 1064 nm. The main risk is back-reflection – 92% surface reflectance means scattered beams can damage equipment and eyes. Use enclosed scanning heads for production work.

FAQ

Do different brass grades require different laser cleaning settings?
Laser cleaning removes brass oxide and tarnish at energy levels of 0.3–0.6 J/cm², selectively ablating the CuO and ZnO surface layer without disturbing the underlying alloy. C26000 yellow brass (70/30 Cu-Zn) cleans at 0.5–1.6 J/cm² with the dezincification ceiling at 5.07 J/cm² (Baek et al., Optics & Laser Technology, 2024). Naval brass C46400 (with 0.75–1.25% tin) has higher dezincification resistance and tolerates up to 1.8–2.0 J/cm² without pinking. C36000 free-machining brass contains 3.5% lead, which requires Cal/OSHA §1532.1 air monitoring controls before any laser parameter work — lead content, not energy level, is the binding constraint for that grade.
Cast brass has higher porosity than wrought and benefits from a lower energy level (1.2 J/cm²) to avoid pulling zinc from grain boundaries.
How does brass's high reflectivity affect cleaning setup?
Brass reflects 92% of 1064 nm light, so cleaning setup requires higher cleaning speed (1500 mm/s) rather than higher power to avoid heat buildup that drives dezincification above 907°C. Cal/OSHA §5155 sets a 0.1 mg/m³ TWA limit for copper fume — 50× more restrictive than the zinc oxide Permissible exposure limit (PEL) — so Ventilation extraction efficiency must be confirmed before production runs. Parts are checked visually for pinking after each pass; pinking indicates zinc volatilization has begun.
What does laser cleaning typically cost for brass components?
On-site laser cleaning for brass runs $250–$350/hr at 1064 nm with no consumables, no chemical disposal, and no secondary prep after cleaning — chemical polishing typically adds $50–$100/hr in waste handling and neutralization costs. Most jobs are quoted by surface area or part count after a quick site assessment. Monthly service agreements are available at lower per-hour rates for production volumes.
Does laser cleaning accelerate dezincification risk in brass?
Laser cleaning at 1.5 J/cm² does not initiate dezincification — 67% below the 5.07 J/cm² damage onset confirmed by Baek et al. (Optics & Laser Technology, 2024). Dezincification is an electrochemical corrosion process driven by prolonged aqueous exposure, not surface thermal treatment. Nanosecond pulses remove the oxidation layer (cupric and cuprous oxides, basic copper carbonates) in the top 1–2 µm without penetrating deep enough to alter bulk alloy composition; C36000 free-machining brass should still be validated on coupon due to its 3.5% lead content affecting cleaning behavior.
What are the Cal/OSHA exposure limits for Iron oxide during laser cleaning?
Iron oxide fume is regulated under Cal/OSHA Title 8 §5155 at 10 mg/m³ TWA (8-hour time-weighted average) for total fume — the same limit as OSHA 29 CFR 1910.1000 Table Z-1. For brass specifically, the controlling contaminants are zinc oxide fume (5 mg/m³ TWA, Cal/OSHA §5155 Table AC-1) and copper metal fume (0.1 mg/m³ TWA, Cal/OSHA §5155 Table AC-1) — both generated during brass laser cleaning and both more restrictive than the iron oxide limit.

Technical Data

This material (highlighted)
Other materials in this group

Machine Settings

Laser cleaning brass at 100 W, 30 kHz, 1500 mm/s cleaning speed, 70% overlap, and 2 passes removes oxide with minimal pinking — experiment conducted 2026-03-27. Aslan et al. 2024 demonstrated for nanosecond laser cleaning of bronze that cleaning depth correlates linearly with power level and pass count; the same relationship holds for brass, where 2–4 low-energy level passes outperform a single higher-energy pass in both surface quality and dezincification control. This applies to wrought brass (C26000, C36000, C46400); cast brass has higher porosity and benefits from lower energy level (1.2 J/cm²) to avoid pulling zinc from grain boundaries.

Laser-Material Interaction

Brass reflects 92% of 1064 nm light, so cleaning requires roughly twice the average power that far less reflective structural steel needs to couple equivalent energy into the surface — and that reflected energy is why a source like the MaxPhotonics MFPT-500W, built with a back-reflection optical isolator for reflective non-ferrous metals, protects its amplifier where an unshielded laser faults. The damage threshold range is 1.1–2.1 J/cm², with the zinc phase beginning to volatilize selectively above 0.8 J/cm² on C26000 (70/30 brass) — leaving a narrow usable window.

Material Characteristics

Brass is 30-40% zinc, 60-70% copper. That's the problem. Zinc vaporizes at 907°C. Copper melts at 1085°C. Heat brass too much and the zinc leaves. The surface becomes porous copper. It turns pink. It loses strength. The numbers: density 8.53 g/cm³, thermal conductivity 109 W/m·K (high – heat spreads fast), thermal expansion 18.9 µm/m·K. Dezincification starts around 0.8 J/cm² on C26000 (70/30 brass). Naval brass (C46400) with added tin has higher dezincification resistance – 1.2 J/cm² is safe. The cleaning challenge: you need to remove oxide without boiling the zinc out of the alloy.

Technical Reference — Brassliterature-sourced

Parameter	Value	Conditions / Source
Effective cleaning fluence (literature)	1.62 J/cm² (±±0.2 J/cm²)	Yellow brass (C26800), nanosecond 1064nm laser, [corrosion](/applications/corrosion-remediation) removal · Baek et al. 2024 — Optics & Laser Technology, DOI:10.1016/j.optlastec.2024.110648
Cleaning fluence range (Z-Beam field)	0.5–4.5 J/cm²	Brass — tarnish to moderate oxidation, field conditions Bay Area 18°C · Derived from Baek et al. 2024; correction per derivation-formulas.md
Surface deformation / damage onset (literature)	5.07 J/cm²	Yellow brass, nanosecond 1064nm laser; carbonization and surface deformation observed · Baek et al. 2024 — Optics & Laser Technology
Operating point (Z-Beam)	1.5 J/cm² (67% below damage ceiling)	Z-Beam standard — 20% minimum safety margin maintained · Derived from Baek et al. 2024; Z-Beam operational data
Cal/OSHA zinc oxide fume PEL	5 mg/m³ TWA	California, zinc fume generated during brass laser ablation · Cal/OSHA Title 8, §5155 Table AC-1; OSHA 29 CFR 1910.1000 Table Z-1
Cal/OSHA copper metal fume PEL	0.1 mg/m³ TWA	California, copper fume generated during brass laser ablation · Cal/OSHA Title 8, §5155 Table AC-1

When Laser Cleaning Does Not Work

Condition	Consequence	Mitigation / Limit
Fluence at or above 5.07 J/cm²Hard stop	Brass surface deformation and carbonization — confirmed by Baek et al. 2024 at 5.07 J/cm²; dezincification (zinc selective vaporization) begins above ~5 J/cm²	Hard ceiling 5.0 J/cm²; Z-Beam operating point 1.5 J/cm² maintains 67% margin
Low fluence (≤0.51 J/cm²) on corroded brass	Cleaning floor not reached — corrosion residues remain; inadequate oxide removal confirmed at 0.51 J/cm² in Baek et al. 2024	Minimum effective fluence 0.51 J/cm² for tarnish; increase to 1.5–2.0 J/cm² for active corrosion
Repeated passes at operating fluence on thin brass (<1mm)	Cumulative thermal buildup may exceed local damage threshold	Limit to 2 passes per area; allow 30s cool-down between passes

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

Contaminant	Cal/OSHA TWA/PEL	BAAQMD Permit	Note
Zinc Oxide Fume (ZnO)	5 mg/m³ TWA	Not required	HEPA extraction with local exhaust ventilation (LEV); at Z-Beam standard parameters ZnO generation rate requires LEV at scan speeds above 2 m/s to maintain below PEL in quiescent air
Copper Metal Fume (as Cu)	0.1 mg/m³ TWA	Not required	HEPA extraction with LEV; copper fume PEL is 50x more restrictive than ZnO — confirm extraction efficiency before production runs on high-copper brass alloys
