Bronze Laser Cleaning

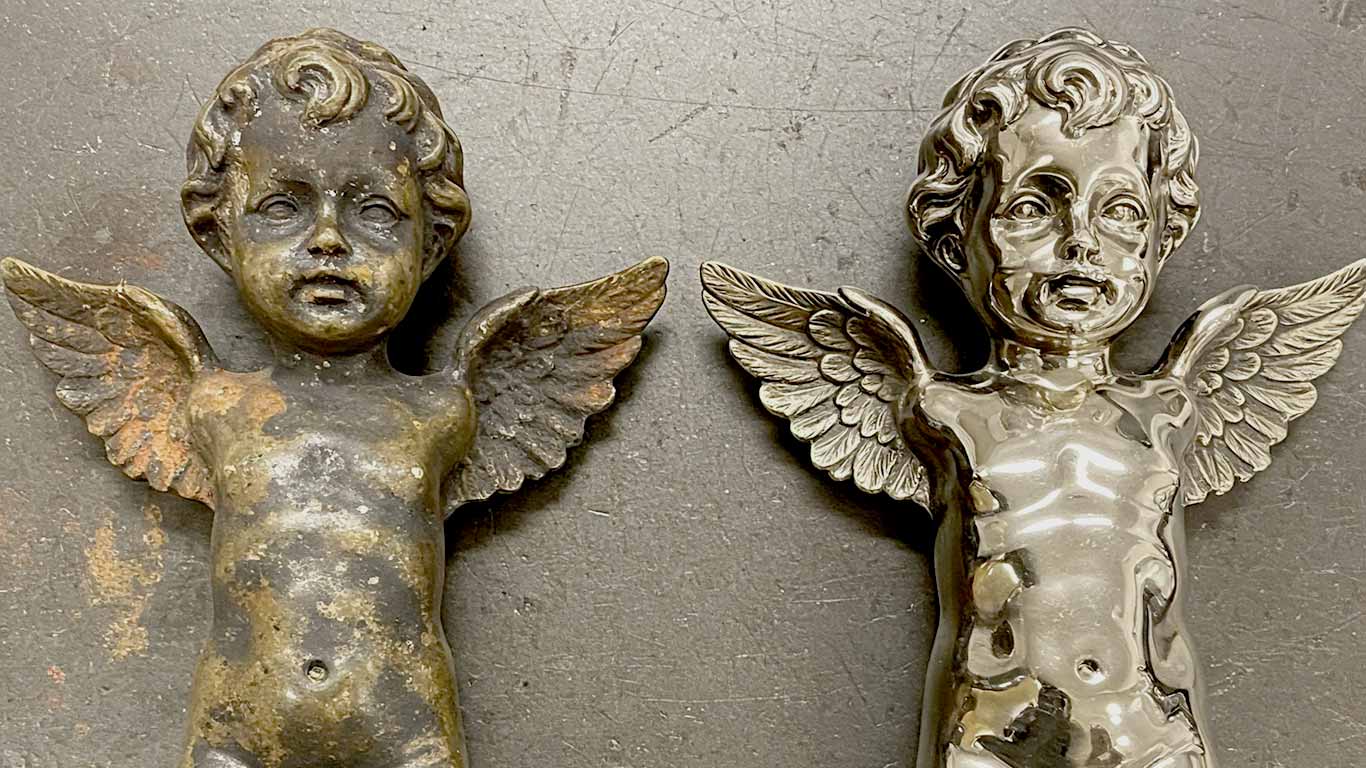

Outdoor sculpture and marine hardware in bronze can lose corrosion and later coatings with a dry laser pass when the grade is known and copper-bearing dust is captured at the head. Surface color often matters as much as cleanliness. Patina may be the finish the owner wants to keep. A hidden-face trial decides what leaves and what stays. A hot pass that strips that layer leaves a bright less stable face.
Steps and considerations when laser cleaning bronze
Bronze work starts with an alloy call and copper dust controls, then a scrap coupon before any production face sees energy. Patina structure changes how soon soil lifts, so grade notes matter as much as the beam map. See heritage architectural cleaning when the piece is outdoor metal (Laser cleaning of Cu-based artefacts) (Laser Cleaning Tests on Archaeological Copper) (LACONA VI, lasers in conservation of artworks).
1Document the alloy grade and patina class
- Record tin content and patina type before setup. Verdigris and atmospheric soiling need different first-pass energy than bare cast bronze.
- If the call might be aluminum bronze or brass, stop and open the sibling material page before copying settings.
2Stage copper dust capture
- Treat dry bronze cleaning as copper-bearing particulate work under OSHA copper dust and fume rules.
- Run local exhaust at the head before the coupon pass, not after the first lift.
3Coupon, then freeze the map
- Hold the first pass gentle on scrap until the face stays even, then record that setting for production.
- Compare with brass, aluminum bronze, or copper when the substrate call is uncertain.
Sources(1 reference)
- Buccolieri, G. et al. 'Laser cleaning of Cu-based artefacts.' ACTA IMEKO, vol. 7, no. 3, 2018, pp. 107-113. acta.imeko.org (opens in new tab) — copper alloy laser cleaning workflow
Common questions when laser cleaning bronze
Can laser cleaning damage heritage bronze?
Heritage bronze can scar when energy jumps before patina class is known. Heat tint on the alloy face means drop energy and reclassify the corrosion layer before another pass (Di Francia 2022).
Does bronze need different settings than brass?
Tin content and patina structure change how soon soil lifts, so bronze and brass need separate coupon maps even when both sit in the copper-alloy band. Confirm the grade call before copying settings from a sibling page.
What dust rules apply for bronze laser cleaning?
Bronze laser cleaning still throws copper-bearing dust and fume, so keep source capture at the head under OSHA copper dust and fume rules even on dry conservation jobs.
Sources(1 reference)
- Di Francia, E. et al. 'Laser-cleaning effects induced on different types of bronze archaeological corrosion products structures.' Applied Surface Science, vol. 577, 2022, 151883. sciencedirect.com (opens in new tab) — bronze patina laser cleaning response
How bronze takes a laser pass
Patina on bronze often absorbs near-infrared light sooner than the alloy face underneath. Bright stock couples at about 35 percent light absorption at 1064 nanometers. Published copper-alloy conservation work places metal injury near 1.5 to 4 joules per square centimeter under nanosecond pulses (Laser Cleaning Tests on Archaeological Copper) (LACONA VI, lasers in conservation of artworks). That band is wider than bare copper's tight window. Heavy verdigris still overlaps cleaning onset, so energy rises on coupons instead of opening with one high pass. Patina structure changes how fast soil lifts without changing the alloy grade call (Di Francia 2022).
Sources(3 references)
- Laser Cleaning Tests on Archaeological Copper Alloys Using an ND:YAG Laser, Laser Chemistry, 2006 doi:10.1155/2006/75831 (opens in new tab) — 1.5–4 J/cm² copper-alloy injury under ns 1064 nm
- LACONA VI: Lasers in the Conservation of Artworks, Springer, 2007 link.springer.com (opens in new tab) — conservation laser cleaning on copper alloys
- Di Francia, E. et al. 'Laser-cleaning effects induced on different types of bronze archaeological corrosion products structures.' Applied Surface Science, vol. 577, 2022, 151883. sciencedirect.com (opens in new tab) — patina structure affects bronze laser cleaning response
Material properties that matter when laser cleaning bronze
Bronze laser cleaning depends on how stiff the alloy is and how fast heat leaves the irradiated zone. Charted bronze for this page sits near 400 megapascals tensile strength, about 8,800 kilograms per cubic meter density, and 60 watts per meter kelvin thermal conductivity (MatWeb material property data). Heat spreads faster than on soft aluminum but slower than on bare copper in the same conservation bay.
Sources(1 reference)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — 400 MPa tensile, 8,800 kg/m³ density, 60 W/m·K conductivity
The production window when laser cleaning bronze
On the chart, production bronze stays in a safe 1.5–4 J/cm² band for common short-pulse near-infrared work (Laser Cleaning Tests on Archaeological Copper) (LACONA VI, lasers in conservation of artworks). That equals about 1.5 to 4 joules per square centimeter on coupon tests. Patina usually leaves at lower energy than the alloy can take, so corrosion products come off first and later passes stay under that upper metal-injury limit instead of chasing leftover tint with a single high pass. Cast and wrought grades still need a pause between energy steps, because heat piles up even inside the safe band when line overlap is high. Keep dust capture on for the whole dry job while energy sits in that band, and re-check the surface before waxing or weld prep follows (Di Francia 2022).
- This material (highlighted)
- Other materials in this group
Sources(2 references)
- Laser Cleaning Tests on Archaeological Copper Alloys Using an ND:YAG Laser, Laser Chemistry, 2006 doi:10.1155/2006/75831 (opens in new tab) — 1.5–4 J/cm² copper-alloy injury under ns 1064 nm
- LACONA VI: Lasers in the Conservation of Artworks, Springer, 2007 link.springer.com (opens in new tab) — conservation laser cleaning on copper alloys
Cleaning parameters when laser cleaning bronze
Heritage bronze and marine hardware need separate parameter maps because patina depth and tin content change where cleaning starts. Verdigris and cast-soil layers usually leave below the alloy injury band, so heavy corrosion and bright cast faces should not share one energy map (Laser cleaning of Cu-based artefacts) (Di Francia 2022).
Sources(2 references)
- Buccolieri, G. et al. 'Laser cleaning of Cu-based artefacts.' ACTA IMEKO, vol. 7, no. 3, 2018, pp. 107-113. acta.imeko.org (opens in new tab) — copper artefact laser cleaning parameters
- Di Francia, E. et al. 'Laser-cleaning effects induced on different types of bronze archaeological corrosion products structures.' Applied Surface Science, vol. 577, 2022, 151883. sciencedirect.com (opens in new tab) — bronze patina laser cleaning parameters
Key facts when laser cleaning bronze
Bronze facts on this chart cover the Cu-Sn alloy family. Charted tensile strength sits near 400 megapascals, density near 8,800 kilograms per cubic meter, and thermal conductivity near 60 watts per meter kelvin (MatWeb material property data). Short-pulse near-infrared sources are the usual class for this property set. See heritage architectural cleaning for outdoor metal contexts.
| Parameter | Value |
|---|---|
| Canonical substrate | Copper / bronze (Cu-Sn) |
| Tensile strength | 400 MPa |
| Density | 8,800 kg/m³ |
| Typical wavelength | 1064 nm, pulsed |
Sources(1 reference)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — 400 MPa tensile, 8,800 kg/m³ density, 60 W/m·K conductivity
Failure modes when laser cleaning bronze
Bronze cleaning fails when patina class or alloy grade is wrong. It also fails when copper dust capture is missing. Heavy verdigris can hide heat tint until the alloy face is already marked. Uncontrolled particulate violates exposure limits on dry jobs (Siano 2015, Nd:YAG conservation review).
| Condition | Consequence |
|---|---|
| Verdigris or patina run with bare-metal energy[1] | Heat tint or local melt on the alloy face before soil is fully gone |
| Alloy grade assumed instead of verified[1] | Wrong energy map copied from brass or aluminum bronze |
| No source capture on copper-bearing dust[1] | Crew exposure above copper dust and fume limits |
Sources(1 reference)
- Siano S. et al., "Laser cleaning in conservation of stone, metal, and painted artifacts: state of the art and new insights on the use of the Nd:YAG lasers", Academia.edu, 2015 academia.edu (opens in new tab) — Nd:YAG laser cleaning failure modes on copper alloys
Related videos
Standards, limits, and permit triggers when laser cleaning bronze
Laser cleaning bronze raises copper-bearing dust and fume even when no chemistry is added to the job. Capture must be staged before the coupon pass under federal OSHA copper limits, California Title 8 section 5155 airborne rules, and BAAQMD Regulation 6 visible-emission limits on Bay Area plumes (OSHA copper dust / fume chemical data) (Cal/OSHA Title 8 §5155 airborne contaminants) (BAAQMD Regulation 6 particulate matter).
OSHA
View official documentation (opens in new tab)Chemical data entry 538 sets copper dust and fume exposure limits that bind dry bronze laser cleaning when local exhaust is missing at the head.[1]
Cal/OSHA
View official documentation (opens in new tab)Section 5155 airborne contaminant tables apply when bronze cleaning throws alloy dust into the shop breathing zone without source capture.[2]
BAAQMD
View official documentation (opens in new tab)Regulation 6 caps visible plumes at Ringelmann No. 1 for no more than three minutes per hour, so exhaust still matters on Bay Area bronze restoration and fabrication work.[3]
Sources(3 references)
- OSHA Copper dust and fume osha.gov (opens in new tab) — OSHA copper dust and fume PELs
- Cal/OSHA Title 8 §5155 airborne contaminants dir.ca.gov (opens in new tab) — Title 8 section 5155 airborne contaminants
- BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab) — BAAQMD Regulation 6 visible emissions Ringelmann No. 1
