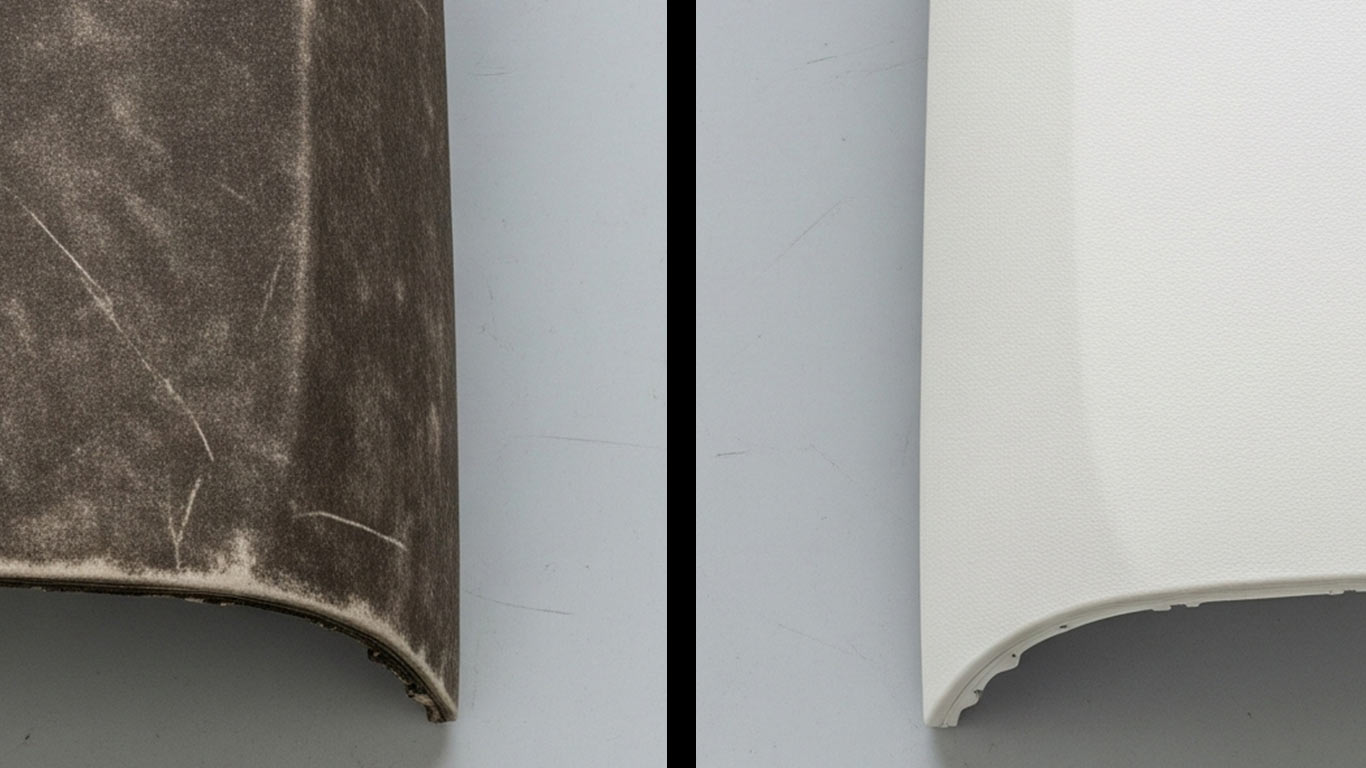

Fiber Reinforced Polyurethane FRPU Laser Cleaning
Fiber reinforced polyurethane (FRPU) requires laser parameters set for the polymer matrix, not the reinforcing fibers, because urethane softens and melts well below the temperature that damages the fiber network. Laser cleaning removes surface contamination such as mold release, dust, and light oxidation from FRPU tooling and finished parts without driving heat into the fiber layer underneath. Mold release residue concentrates on tooling faces and the side of a molded part that sat against the mold, so that face often needs a separate pass at lower fluence than an exposed panel. FRPU is not fiberglass gelcoat and not Kevlar reinforced polymer: gelcoat is a thin resin skin over glass fibers with its own cure chemistry, and Kevlar fiber tolerates heat differently than urethane-bound composites, so settings proven on either material do not transfer to FRPU. Laser cleaning does not repair delamination, does not restore a melted matrix, and will not remove fibers that have already been exposed by prior damage.
Steps and considerations when laser cleaning FRPU
Before raising energy on fiber reinforced polyurethane FRPU, name fiber type, foam density, and any mold-release or paint stack because those notes change how fast a near-infrared pass heats the soft urethane matrix (Laser cleaning in composites manufacturing, CompositesWorld).
1Name the layup and soil stack
- Record glass versus carbon fiber, foam core density, and whether release agent, paint, or grease sits on the face. Open-cell foam that softens under hand heat rules out laser cleaning until a scrap coupon proves the matrix still holds.
- Mark a scrap edge or hidden tab for the first coupon so production skins stay untouched until the map holds.
2Stage capture before the first pulse
- Place extraction at the beam head so polymer dust and urethane fumes do not ride the booth air during multi-pass work.
- Confirm eyewear and interlocks for 1064 nanometer pulsed fiber before any open-beam coupon.
3Raise energy only after coupon proof
- Start near the chart cleaning onset and step up only while the matrix color and fiber reveal stay stable under raking light.
- Drop energy if the urethane face softens, fibers fray, or foam cells open before contamination comes off.
Sources(1 reference)
- Laser cleaning in composites manufacturing, CompositesWorld compositesworld.com (opens in new tab) — Composite manufacturing laser cleaning practice for FRPU
FRPU laser cleaning questions
Does FRPU have a published damage ceiling for nanosecond 1064 nm cleaning?
Named FRPU grades lack a peer-reviewed typed injury limit on this path. The fiber-reinforced chart shows a secondary 1.45 to 5 joules per square centimeter band for peer comparison, so scrap laminate proves the map instead of treating that chart as a hard stop.
What is Will the laser burn through the polyurethane foam core?
Heat pools in the soft urethane matrix because thermal conductivity sits near 0.32 watts per meter-kelvin on the chart. Keep cleaning speed high and overlap modest, and drop energy if foam cells open or the face softens before contamination comes off.
Can laser cleaning remove mold release from FRPU tooling faces?
Pulsed cleaning can remove release films and manufacturing residue from composite tooling without soaking the fiber matrix in solvents. Coupon the actual release chemistry because semi-permanent films and paste waxes do not share one map (Guide to Mold Release Systems, Explore Composites).
What wavelength do Bay Area crews run on FRPU parts?
Bay Area FRPU jobs run pulsed fiber near 1064 nanometers with short pulse length so the soft matrix cools between overlaps rather than defaulting to ultraviolet lab sources.
Sources(1 reference)
- Guide to Mold Release Systems, Explore Composites explorecomposites.com (opens in new tab) — Mold release systems on composite FRPU tooling faces
How FRPU takes a laser pass
Fiber reinforced polyurethane FRPU couples a near-infrared pulse mainly through dark soil, paint, and fiber tips while the pale urethane matrix absorbs less. Chart light absorption near 0.2 and thermal conductivity near 0.32 watts per meter-kelvin keep heat in a small spot, so polyurethane paint stacks can come off by selective film removal when pulse energy stays below matrix injury (Schulz et al. 2021).
Sources(1 reference)
- Paint removal from thermoplastic materials and its influence on the physical-mechanical properties for the recycling of the polymer doi:10.1088/1757-899X/1037/1/012032 (opens in new tab) — Paint removal from thermoplastic materials under laser cleaning
Material properties that matter when laser cleaning FRPU
Fiber-reinforced polyurethane spans about 48 megapascals tensile strength with thermal conductivity near 0.32 watts per meter-kelvin and density near 1200 kilograms per cubic meter on this chart, so it stays softer and less conductive than carbon fiber reinforced polymer peers. Light absorption near 0.2 at 1064 nanometers keeps the pale matrix cooler than dark soil layers, and foreign films often leave first when the coupon map is right (Bratasz et al. 2022).
Sources(1 reference)
- Micro-texturing of polymer surfaces using lasers: a review link.springer.com (opens in new tab) — Polymer laser interaction principles for FRPU matrix
Production energy band for FRPU laser cleaning
Among fiber-reinforced peers on the chart, FRPU shows the widest secondary margin between soil removal and matrix injury. Chart values place cleaning onset near 1.45 joules per square centimeter and an injury estimate near 5 joules per square centimeter, wider than kevlar and rubber on the same series. No peer-reviewed typed envelope is published for named FRPU grades, so scrap coupons still own the final map before full-area work (IR and UV laser cleaning of polymers (PubMed 11900137)).
- This material (highlighted)
- Other materials in this group
Sources(1 reference)
- IR and UV laser ablation of polymers (PubMed 11900137) pubmed.ncbi.nlm.nih.gov (opens in new tab) — Polymer laser ablation thermal decomposition notes
Cleaning parameters when laser cleaning FRPU
Cleaning parameters unique to fiber reinforced polyurethane FRPU split mold-release and paint removal from bare-matrix finish work. A contamination-first stage near the secondary 1.45 joules per square centimeter chart onset comes first, then energy drops if the urethane face softens or fibers fray before contamination comes off. Polyurethane paint color and binder change how fast the film leaves under nanosecond pulses, so retune after naming the coating stack (Razab et al. 2022).
Sources(1 reference)
- Razab M.K.A.A. et al., "Removal mechanisms of nanosecond pulsed laser cleaning of blue and red polyurethane paint", Applied Physics A (Springer), 2022 link.springer.com (opens in new tab) — Nanosecond laser removal of polyurethane paint films
Key facts when laser cleaning FRPU
Fiber reinforced polyurethane FRPU on this chart sits near 1200 kilograms per cubic meter density with about 48 megapascals tensile strength and thermal conductivity near 0.32 watts per meter-kelvin, so laser heat stays local in the soft matrix beside stiffer kevlar peers. Chart light absorption near 0.2 at 1064 nanometers means dark soil and paint often couple first. See mold and die cleaning for tooling contexts (Jiang et al. 2022).
| Parameter | Value |
|---|---|
| Canonical substrate | Fiber-reinforced polyurethane (FRPU) |
| Density | ~1200 kg/m³ |
| Tensile strength | ~48 MPa |
| Thermal conductivity | ~0.32 W/m·K |
| Typical wavelength | 1064 nm, pulsed |
Sources(1 reference)
- Femtosecond UV Laser Ablation Characteristics of Polymers Used as the Matrix of Astronautic Composite Material, Materials (MDPI), 2022 mdpi.com (opens in new tab) — Polymer matrix ablation under pulsed laser energy
Failure modes when laser cleaning FRPU
FRPU cleaning fails when metal-class energy lands on soft urethane foam or when dust capture is missing. Overlap that dwells on one spot can open foam cells or fray glass fibers before contamination comes off. Fiber-reinforced polymer cleaning work shows matrix injury arrives before full fiber removal when energy climbs too far, so one map does not cover every coating stack (Finger et al. 2020).
| Condition | Consequence |
|---|---|
| Dust capture missing during multi-pass scans[1] | Polymer and fiber dust in the breathing zone |
| Metal-class energy copied onto FRPU coupons[1] | Softened matrix, open foam cells, or frayed fiber reveal |
| One energy map used for every paint and release stack[1] | Incomplete lift or burned matrix under dark coatings |
Sources(1 reference)
- On the Ablation Behavior of Carbon Fiber-Reinforced Plastics during Laser Surface Treatment Using Pulsed Lasers, Materials (MDPI), 2020 pmc.ncbi.nlm.nih.gov (opens in new tab) — Fiber-reinforced polymer ablation behavior under pulsed laser
Related videos
Exposure limits when laser cleaning FRPU
Heated FRPU work can release polymer and fiber dust plus urethane fumes that must stay under shop air rules before production starts. Source capture at the beam head keeps particulate plumes inside federal Table Z-1 limits, California airborne tables, and Bay Area visible-emission rules (29 CFR 1910.1000 Table Z-1) (Cal/OSHA Title 8 §5155) (BAAQMD Regulation 6 particulate matter).
OSHA
View official documentation (opens in new tab)Table Z-1 sets the federal air-contaminant ceilings that apply when FRPU laser work releases polymer particulate and pyrolysis dust into the booth. Keep source capture running so the breathing zone does not ride those Table Z-1 limits during multi-pass scans.[1]
Cal/OSHA
View official documentation (opens in new tab)Title 8 section 5155 Table AC-1 covers airborne contaminants for California shops that heat FRPU under a pulsed beam. Bay Area crews still need hood placement at the scan head when urethane fumes and fiber dust leave the coupon face.[2]
BAAQMD
View official documentation (opens in new tab)Regulation 6 limits visible particulate from industrial exhaust, so outdoor FRPU restoration or booth stacks must stay within Ringelmann No. 1 for no more than three minutes per hour when polymer dust leaves the capture zone.[3]
Sources(3 references)
- 29 CFR 1910.1000 Table Z-1 — Limits for Air Contaminants osha.gov (opens in new tab) — OSHA Table Z-1 air contaminant limits for particulate from FRPU laser cleaning
- 8 CCR §5155 — Airborne Contaminants dir.ca.gov (opens in new tab) — Cal/OSHA Title 8 §5155 airborne contaminants for California FRPU laser shops
- BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab) — BAAQMD Regulation 6 visible particulate emissions Ringelmann No. 1
