Rubber Laser Cleaning

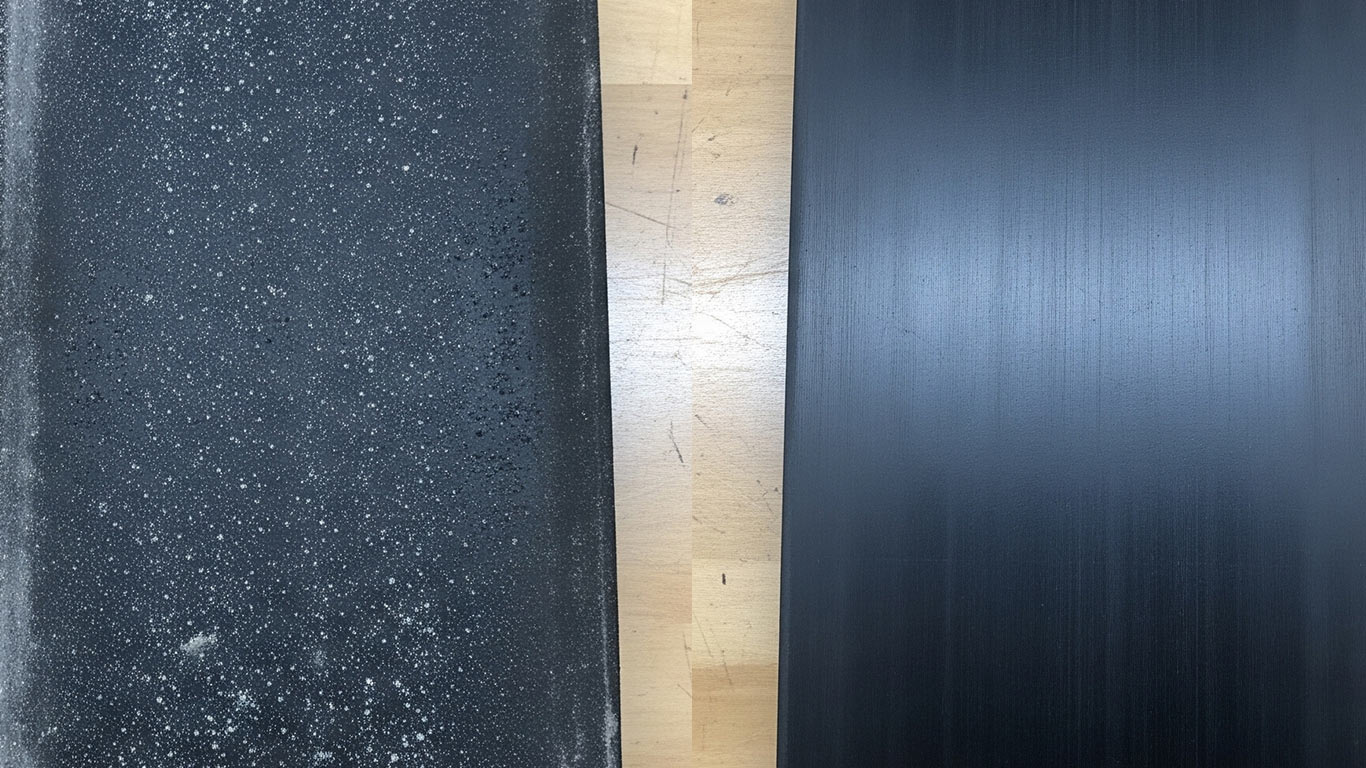

A compression mold cure film is sulfur bound to the cavity surface during vulcanization, a different residue than the release wax on top of it, and clearing it from [tool steel](/materials/tool-steel-laser-cleaning) cavities needs a narrower fluence band than an [injection mold](/applications/injection-mold-tooling-laser-cleaning) cavity does. Laser cleaning removes the [cured rubber](/materials/rubber-laser-cleaning) film and the wax layer together while holding cavity texture at ARPM Class A1 tolerance near 0.10 millimeter, where an abrasive blast would round the vent lands that let trapped air escape mid-cure. An inert gas assist keeps sulfur vapor from recombining on the warm steel behind the beam path. This does not reset a mold that has already lost its vent geometry to wear, and it does not replace a scheduled repolish once the cavity surface itself has pitted.

High-pressure die-casting tooling fails for a different reason than an [injection mold](/applications/injection-mold-tooling-laser-cleaning): molten [aluminum](/materials/aluminum-laser-cleaning) reacts with iron in [H13 cavity steel](/materials/tool-steel-laser-cleaning) to form a hard Fe-Al intermetallic layer that raises cavity roughness and locks a shot in place long before surface dirt alone would cause a reject. OSHA Table Z-1 caps total nuisance dust at 15 milligrams per cubic meter in an enclosed die-casting cell, and laser cleaning strips that intermetallic film and the carbonized release residue around it without the abrasive media that would raise roughness further. The process also leaves PVD and nitride anti-soldering coatings intact, where abrasive blasting cuts through them in one pass. It does not recoat a worn insert or re-cut a soldered cavity back to print dimensions.

Laser cleaning removes polymer residue, release-agent film, and light oxidation from injection mold cavities and cores without abrasive blasting or solvent soak that can round vent edges or scar a polished finish. The method suits [tool steel](/materials/tool-steel-laser-cleaning) cavities and cores where mold release and carbon buildup need to come off between runs, and it fits the broader class of [mold and die cleaning](/applications/mold-die-laser-cleaning-applications) work where dimensional tolerances matter more than speed. It does not replace deep hot-runner tip service, which lives on the separate [hot-runner cleaning](/applications/hot-runner-laser-cleaning) page, and it does not treat die-cast aluminum tooling, since that metal responds differently to the same fluence. Downtime gains from switching to laser cleaning depend on mold complexity, residue type, and current cleaning method, so any comparison against manual teardown needs mold-specific timing rather than a blanket figure.

Requires a material call before a setting, since carbon-filled EPDM and nitrile gasket residue absorb a 1064 nanometer beam efficiently while Viton and other FKM compounds carry the same dark filler but decompose above roughly 200°C into hydrogen fluoride gas. [Carbon steel](/materials/steel-laser-cleaning) flange faces clear this residue between about 1 and 3 J/cm2, well under the 8 to 15 J/cm2 point where the metal itself starts to take damage, so the margin stays wide once the gasket type is confirmed on a coupon. Peer-reviewed laser surface-prep work on bonding faces shows the same selective-lift pattern a flange land needs when the rubber film must leave and the metal underneath must stay ready for the next gasket.

Laser cleaning decomposes mineral oil, synthetic lubricant, and machine grease off steel, aluminum, and stainless steel through fast thermal breakdown of the hydrocarbon film, the same damage-threshold logic that broader laser-cleaning threshold research has documented across very different host materials (Journal of Cultural Heritage, 2000). It is not a substitute for a wet alkaline line degreasing a full rack of parts at once, and it will not clear a bonded hard coating or a thick paint stack sitting on top of the oil.

Requires matching the paint system and substrate pairing before setting energy, because a thin single topcoat on [steel](/materials/steel-laser-cleaning) clears at a fraction of the fluence a multilayer primer stack on [aluminum](/materials/aluminum-laser-cleaning) needs, and the substrate sets its own ceiling once the coating is gone. Paint sits as an applied, cross-linked polymer film bonded by mechanical keying and resin adhesion, not a corrosion product, so pigment load and binder chemistry decide more of the setting than the substrate alone. A surface-integrity study on laser-cleaned aluminum alloy carrying a paint layer documents that a visually bare finish does not by itself confirm the metal underneath escaped the pass undamaged (Applied Optics, 2024).

Release agent, cured resin flash, and paint stack come off a composite tool only when the pulsed beam stays inside the film and never opens carbon fiber or scorches the polymer matrix. Coupon work that held ablation inside roughly 0.1 to 20 micrometers on epoxy laminates shows that band is reachable when energy stays on the contaminant land. Without a labeled offcut proof first, the same settings that clear wax open fiber or leave a charred resin face that fails bond or paint adhesion.
