Stainless Steel Laser Cleaning | Passive Film Science

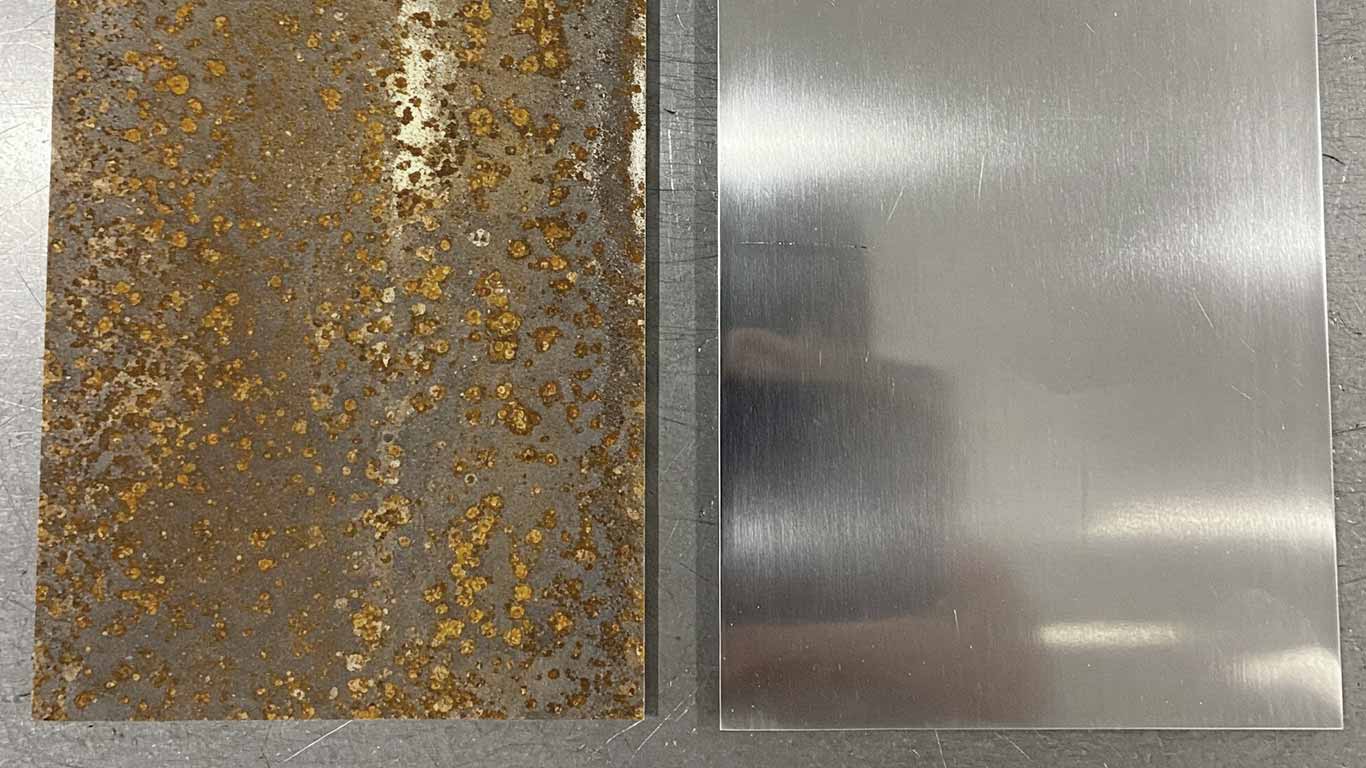

Laser cleaning passivates stainless steel per ASTM A380 by ablating contamination and heat tint while preserving the Cr₂O₃ passive layer — typically 2–5 nm thick — that provides corrosion resistance. After cleaning, corrosion resistance is maintained — on food-grade or pharmaceutical welds, passivation meets ASTM A380 or equivalent standards. No abrasive contact means no embedded particles and no surface roughening.

Laser cleaning of stainless steel can generate Cr(VI) fume when weld scale or heat-affected zones are present — grinding and welding on 300-series stainless are the more common Cr(VI) sources, but laser cleaning of heated weld scale carries the same risk. The OSHA 29 CFR 1910.1026 PEL is 5 µg/m³ TWA with an action level of 2.5 µg/m³ TWA. HEPA extraction with PAPR plus P100+OV cartridges is required when weld scale is present. On bare, non-welded stainless, Cr(VI) generation is significantly lower — but initial air monitoring on the first job of a new scope is required to confirm compliance.

ASTM A380 defines the passivation standard for stainless steel, and laser cleaning at 0.3–0.8 J/cm² meets that specification by removing free iron, oxides, and embedded contaminants without chemical reagents. The 425–860°C carbide precipitation range requires sustained dwell time that 50 ns pulses cannot provide. Micromachines 2025 confirmed that heat-affected depth after 304L nanosecond cleaning is limited to only a few micrometers. This is consistent with the kinetic impossibility of Cr carbide precipitation at nanosecond timescales.

By contrast, grinding with heat buildup, flame descaling, and welding input to adjacent areas all carry sensitization risk on austenitic stainless steel. CW (continuous wave) fiber lasers also carry this risk — they are categorically unsuitable for stainless steel cleaning at any power level. Only nanosecond or shorter pulsed systems provide selective cleaning without bulk thermal sensitization risk.

Sensitization occurs in the 425–870°C range where chromium carbides precipitate at grain boundaries, depleting the Cr content needed for the Cr₂O₃ passive film — laser cleaning removes the surface oxide but cannot reverse subsurface sensitization. Pitting corrosion from chloride attack removes metal, not just oxide — laser cleaning removes the surface contamination but cannot restore the lost material or raise the pitting potential back to baseline. Deep sensitization from sustained heat exposure (the 425–860°C carbide precipitation range) alters subsurface microstructure; laser cleaning removes surface oxide but cannot reverse grain-boundary chromium depletion that has already occurred. And heavy mill scale over 50 µm requires mechanical pre-treatment first — the ASTM A380 descaling sequence applies before laser passivation.

Post-clean passivation testing per ASTM A967 confirms whether corrosion resistance has been restored.
