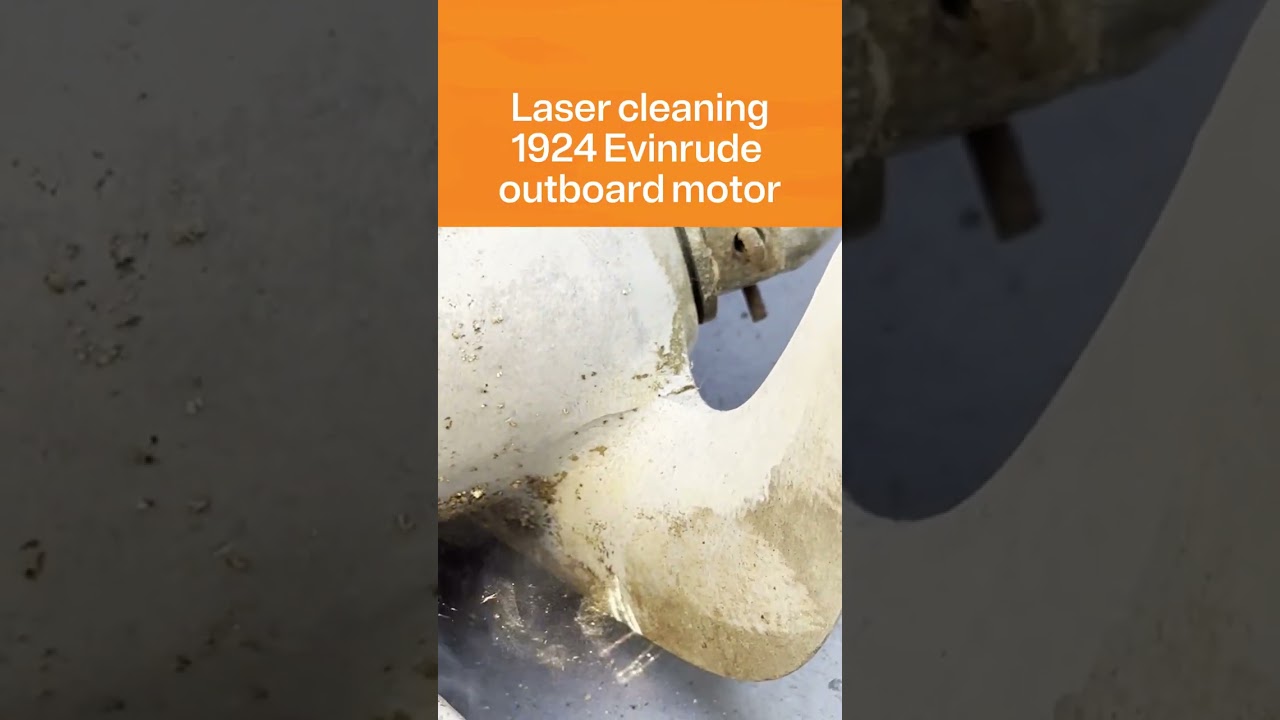

Antique Evinrude Outboard Propeller Laser Cleaning

Outdoor sculpture and marine hardware in bronze can lose corrosion and later coatings with a dry laser pass when the grade is known and copper-bearing dust is captured at the head....

Laser cleaning strips copper patina, the greenish or brown corrosion film copper and bronze build over years outdoors, without the wire brushing or acid dips that scratch or stain the metal underneath. The beam ablates the oxide and carbonate layers in place, so a roof panel, statue, or busbar keeps its original surface profile through the pass. It will not reverse a deep pit already etched into the metal, match a patina shade a conservator wants kept, or clear a large surface in one blanket setting; patina thickness and age both change how many passes a job needs before the copper is ready for inspection.

Requires matching the paint system and substrate pairing before setting energy, because a thin single topcoat on [steel](/materials/steel-laser-cleaning) clears at a fraction of the fluence a multilayer primer stack on [aluminum](/materials/aluminum-laser-cleaning) needs, and the substrate sets its own ceiling once the coating is gone. Paint sits as an applied, cross-linked polymer film bonded by mechanical keying and resin adhesion, not a corrosion product, so pigment load and binder chemistry decide more of the setting than the substrate alone. A surface-integrity study on laser-cleaned aluminum alloy carrying a paint layer documents that a visually bare finish does not by itself confirm the metal underneath escaped the pass undamaged (Applied Optics, 2024).

Requires reading the deposit-substrate pair before setting energy, because a [built-up edge](/materials/aluminum-laser-cleaning) on a carbide insert and the same cold-welded smear on a [tool-steel](/materials/tool-steel-laser-cleaning) die do not clear at the same fluence. The deposit got there by mechanical transfer, pressure welding during machining, adhesive wear between sliding parts, or hot workpiece pickup on a die, not by a chemical reaction with the base metal, so a matching offcut decides the setting rather than a rust or oxide default. Built-up edge on cutting tools forms when chip material pressure-welds to the rake face, work-hardens, and seizes the tip, the same transfer path that shows up as galling on dies and as hot pickup on a [tungsten-carbide](/materials/tungsten-carbide-laser-cleaning) cutting edge.

Laser cleaning removes the chromium-oxide and titanium-oxide scale that post-weld and post-anneal heat treatment grows on stainless steel, titanium, and Inconel, clearing the film without a chemical pickling bath. It will not rebuild the chromium that heat already pulled out of the grain boundaries beneath a dark heat-treated color, will not fix titanium alpha case that has already let oxygen diffuse deep into the metal, and will not stop the bare surface from re-oxidizing once it goes back into service heat.

Black crust on marble, limestone, sandstone, and granite is a gypsum-soot film that absorbs far more pulsed-laser energy than the pale stone underneath it, which is what lets a pulsed pass remove the deposit before the parent stone takes damage. Sandstone carries the tightest margin between crust removal and surface damage of the stones on this page, so a labeled offcut test matters there even when a wider marble coupon already cleared.

Precision surface work requires contact-free cleaning because gauge faces, optical flats, and polished tooling scratch under abrasive pads or chemical baths. Pulsed fiber sources r...

Landmark facade work requires a hidden test patch before pulsed laser cleaning touches any visible elevation. The pass removes soot, pollution crust, and graffiti from [brick](/mat...
