Netalux Laser Cleaning Machines — Specifications & Parameters

Sourcehttps://netalux.com/product/needle

Netalux laser cleaning systems in this open reference database (7 models). Architectures: High-Energy Q-Switched, Standard Q-Switched, MOPA (Master Oscillator Power Amplifier). Published power range across listed models: 100–500 W average power. Specifications are manufacturer-sourced; Z-Beam does not sell these systems.

I'm from Netalux and want to update this data

Published values come from public manufacturer datasheets and product pages. If you represent Netalux and see an error, outdated figure, or missing model, send a short correction with a public source URL and we will review it.

  • Company name and your role
  • Machine model and the field to change
  • Correct value and units
  • Link to the official product page or datasheet

Email info@z-beam.com · Contact form

Pulse energy — Netalux lineup

Datasheet max pulse energy (mJ) for complete systems in this brand. Color = source architecture. Click a name for machine detail.

Pulse energy — Netalux lineup0.00316394125Netalux Jango®: 100 mJ · Q-HENetalux Jango®100 mJ · Q-HENetalux Kamino 300: 50 mJ · Q-HENetalux Kamino 30050 mJ · Q-HENetalux Needle 150: 1.0 mJ · Q-stdNetalux Needle 1501.0 mJ · Q-stdNetalux Needle 100: 1.0 mJ · Q-stdNetalux Needle 1001.0 mJ · Q-stdNetalux Needle 300: 2.0 mJ · MOPANetalux Needle 3002.0 mJ · MOPANetalux Needle 200: 2.0 mJ · MOPANetalux Needle 2002.0 mJ · MOPA
  • Q-HE
  • Q-std
  • MOPA
  • CW
Parity basis: datasheet max pulse energy (mJ) only · pulsed · ~1064 nm · shared contaminant thresholds · modeled spot (not a certified cross-OEM test).

Parameter ranges — Netalux lineup

Min–max across Netalux complete systems in the database. Orange = datasheet; blue = derived. Only properties with published data are shown.

Parameter rangesAvg Power100.0 W500.0 WPulse Energy1.00 mJ100.0 mJFrequency2.00 kHz4,000 kHzPulse Width20.0 ns500.0 nsPeak Power6.67 kW500.0 kWFluence @ 2 mm0.03 J/cm²7.96 J/cm²Fluence @ 5 mm0.01 J/cm²1.27 J/cm²Weight19.3 kg850.0 kgFiber Length50.0 mBeam Quality M²1.60 2.00 Operating Temp.4.00 °C35.0 °CPublished datasheetCalculated from physics
Each row is scaled to the Netalux lineup max for that property (not a shared multi-unit axis). Validate against machine calibration before production use.
Model

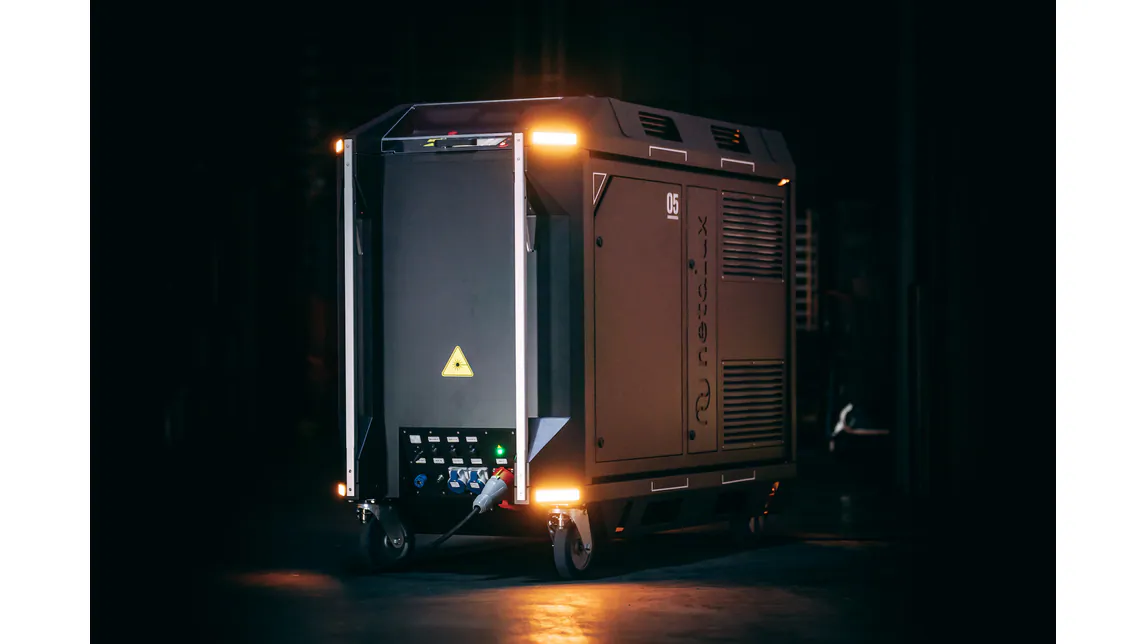

Netalux Jango® laser cleaning system
Jango®
→

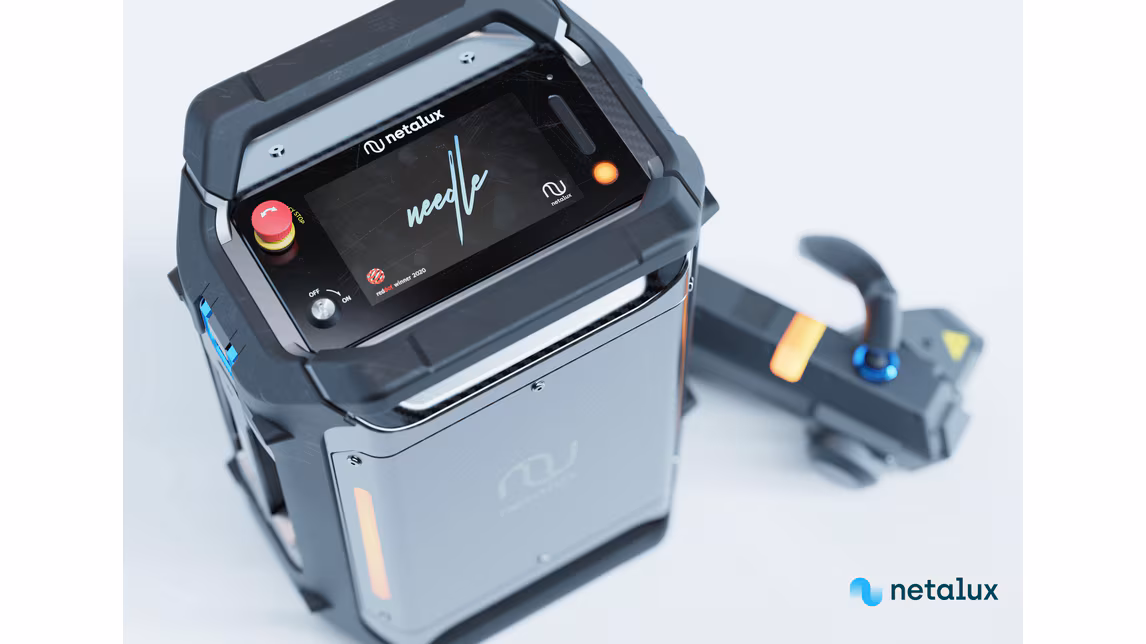

Netalux Needle 100 laser cleaning system
Needle 100
→
Netalux Needle 150 laser cleaning system
Needle 150
→

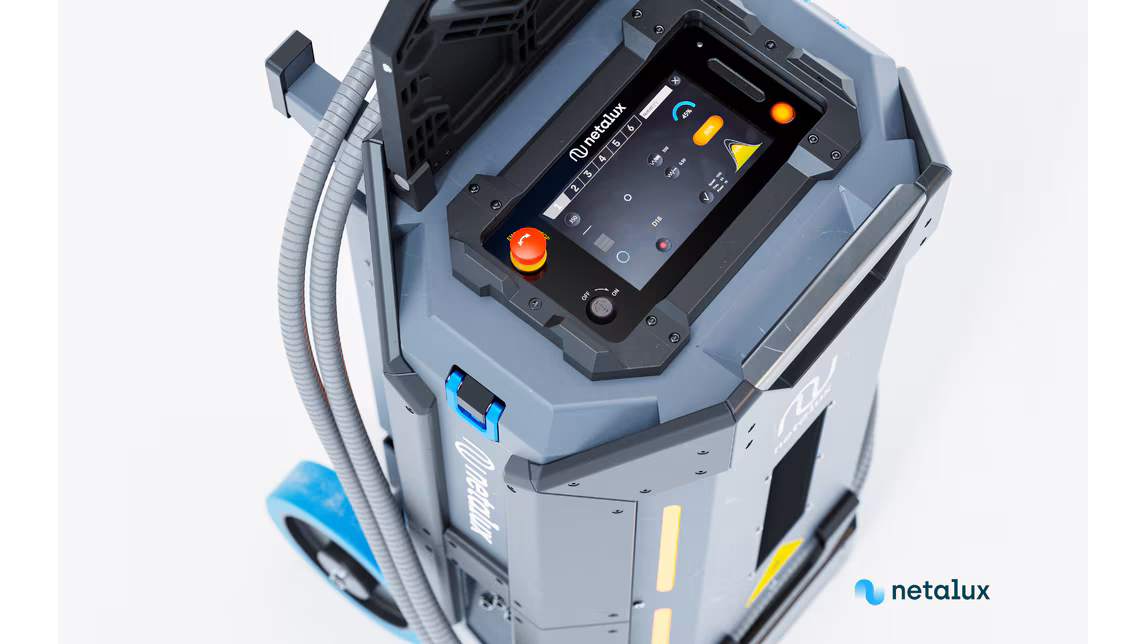

Netalux Needle 200 laser cleaning system
Needle 200
→
Netalux Needle 300 laser cleaning system
Needle 300
→
Needle 500
Needle 500
→
Kamino 300
Kamino 300
→
