What is the typical laser cleaning rate (m2/hour) for concrete surfaces?

Concrete laser cleaning rates range from 1 m²/hour for thick multi-layer epoxy [coatings](/applications/hazardous-coatings) to 10 m²/hour for light soot or carbonation deposits on dense, low-porosity surfaces — a 10× spread driven by contaminant absorption depth and pulse repetition rate. ASTM C94 ready-mix concrete surface preparation requirements and ICRI 310.2 surface profile standards define the post-clean condition target; most coating adhesion specs call for CSP 2–3 profile, achievable without abrasive cutting by selecting laser dwell times that volatilize contaminants without micro-roughening the paste matrix. Industrial floors with multi-layer coatings run 1–2 m²/hour; architectural concrete with surface discoloration reaches 8–10 m²/hour.

What wavelength, power, and pulse duration work best for cleaning concrete?

Concrete cleans most effectively at 1064 nm using a nanosecond fiber laser at 2.0–3.0 J/cm² — well below the 4.5 J/cm² paste-erosion threshold and the 5–6 J/cm² aggregate damage threshold documented for Portland cement concrete. At 100 W average power, 50 kHz repetition rate, and 1,000 mm/s cleaning speed with 50% pulse overlap, soot and biological growth lift in 3 passes without micro-roughening the paste matrix. High-strength concrete (50+ MPa compressive strength) has lower porosity and responds to a reduced setting of 2.0 J/cm²; architectural surfaces require tighter dwell control to meet ICRI 310.2 CSP 2–3 profile targets for coating adhesion.

Does laser cleaning concrete create hazardous dust, and how is it controlled?

Laser cleaning of concrete generates respirable crystalline silica — OSHA 29 CFR 1926.1153 sets a PEL of 50 µg/m³ (8-hour Time-weighted average (TWA)) for construction operations. OSHA confirms silicosis from crystalline silica exposure can be disabling or fatal in severe cases (OSHA Health 2024). Required controls are HEPA extraction at the source (H13 or H14 filter), P100 minimum respiratory protection, and air monitoring for all dry concrete work. Pre-1980 concrete structures may also contain lead paint or asbestos aggregate — test substrates before cleaning and, if either is present, apply OSHA 29 CFR 1926.62 (lead) or 1926.1101 (asbestos) controls.

Does laser cleaning alter the surface profile or texture of concrete?

Laser cleaning at 2.0–2.5 J/cm² alters concrete surface profile measurably — carbon and biological deposit removal at this range slightly lowers Ra (surface roughness), while paste erosion above 3.0 J/cm² raises it. At 2.0–2.5 J/cm², carbon and biological deposits are removed with minimal paste loss, producing a surface profile near ICRI CSP 1–2 — acceptable for thin-film coatings. Above 3.0 J/cm², cement paste erodes faster than aggregate, exposing gravel and raising the profile toward CSP 3–4, which improves adhesion for thick epoxy systems but changes the aesthetic on architectural concrete. Single-pass abrasive methods that cut both paste and aggregate uniformly produce a flatter profile; laser cleaning is preferred when preserving the original surface texture is the goal, as no material is cut and no secondary media require disposal.

What are Cal/OSHA limits for mineral particulate during laser cleaning?

Crystalline silica generated during concrete laser cleaning is regulated under Cal/OSHA Title 8 §5155 and the federal silica standards (29 CFR 1910.1053 / 1926.1153), which set a PEL of 50 µg/m³ TWA and an action level of 25 µg/m³ TWA for respirable quartz. Concrete's 15–25% silica aggregate content makes it a higher-exposure substrate than cement paste alone — cleaning at the aggregate interface generates respirable quartz, triggering mandatory air monitoring, a written exposure control plan, and P100 respiratory protection. HEPA extraction at the source is required; P100 filter minimum, powered air-purifying respirator (PAPR) for extended operations, per OSHA silica-crystalline guidance (osha.gov/silica-crystalline).

…Z-Beam came to my home within a couple of hours of receiving the photos I sent.

Eric WoodView all testimonials

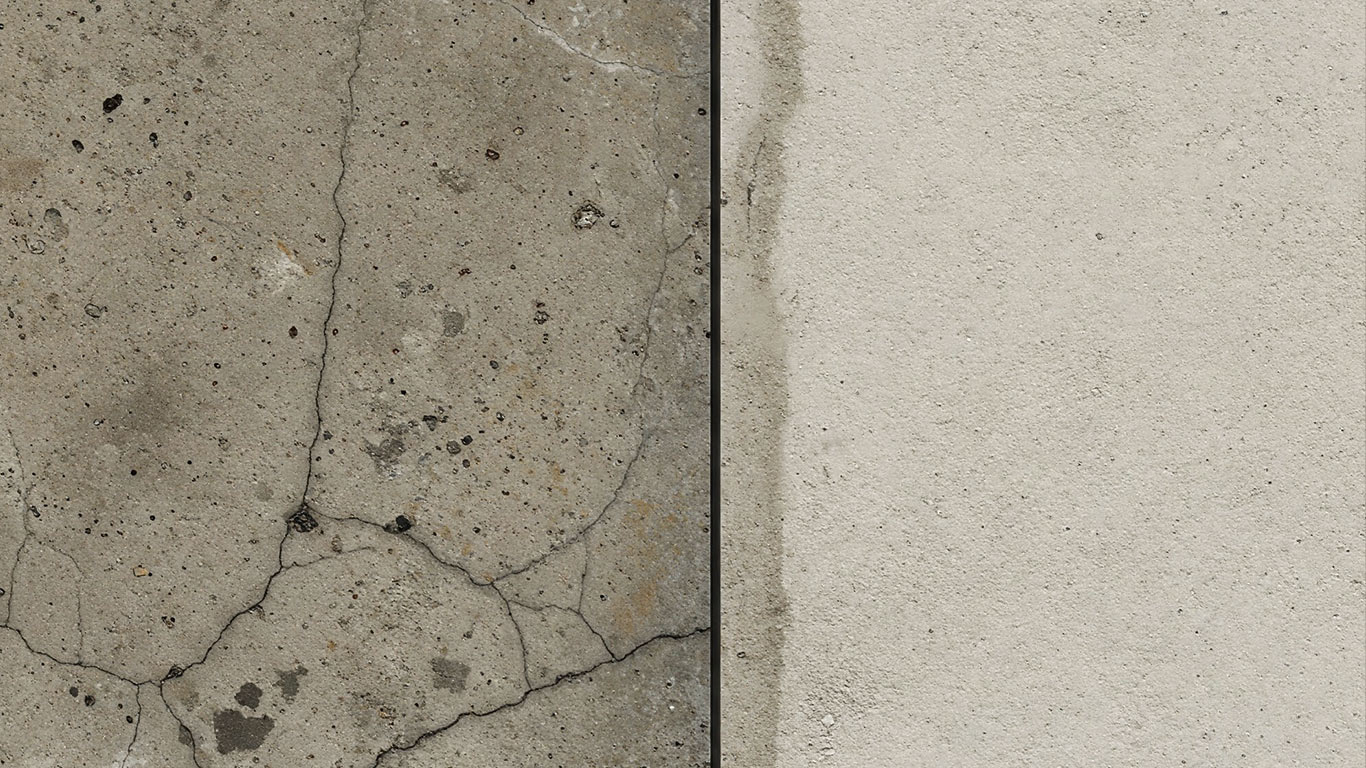

Concrete surface undergoing laser cleaning showing precise contamination removal

Todd DunningMSUnited States

Optical materials for industrial photonics systems

Published

Jan 6, 2026

Concrete Laser Cleaning

Concrete's 15–25% porosity means contaminants soak past the surface layer — but that same porous structure confines the cleaning problem to the cement paste, which fails at 4.5 J/cm² while the aggregate holds to 5–6 J/cm², leaving only a 1.0 J/cm² process window before visible paste erosion begins. Density is 2400 kg/m³. Compressive strength is 25 MPa (typical structural concrete). Tensile strength is only 3.2 MPa – concrete cracks when pulled. Fracture toughness is 0.7 MPa√m – very low.

How to Clean Concrete With a Pulsed Laser

1Assess concrete mix and silica controls

Silica-rich aggregates — quartz sand and granite chips — generate respirable crystalline silica during cleaning, requiring HEPA-filtered extraction and N95 minimum respiratory protection per OSHA §1910.1053 before any test patch.
Cal/OSHA and federal OSHA require a written exposure control plan for dry concrete tasks generating silica dust above the action level of 25 µg/m³ TWA — confirm controls are documented and in place before mobilization.

2Test on a small area first

Concrete surface spalling at aggregate boundaries is the primary failure mode — quartz inclusions reflect more 1064 nm energy than cement paste, creating uneven response that risks micro-cratering and thermal damage above 2.5 J/cm² on cementitious substrates.
Multiple moderate-energy passes at 50–60% overlap distribute the thermal dose across aggregate and paste zones more evenly than single high-energy passes, which risk over-cleaning paste while leaving contamination on aggregate surfaces.

3Z-Beam on-site service for concrete

Z-Beam serves Bay Area industrial facilities, DOT infrastructure maintenance contractors, and commercial property owners requiring graffiti removal, surface decontamination, and carbonation layer removal from concrete structures.
Each concrete cleaning scope includes a Cal/OSHA §5204 silica exposure assessment and parameter log confirming engineering controls, respiratory protection, and aggregate silica content documented before mobilization.

Regulatory Standards

Concrete dust contains crystalline silica (OSHA Permissible exposure limit (PEL): 50 µg/m³), calcium hydroxide (lime – corrosive), and heavy metals (from aggregates). OSHA confirms respirable crystalline silica is created when grinding or crushing concrete (OSHA 2024). Use HEPA extraction (H13 or H14) and P100 respirators. NIOSH notes materials including concrete generate silica dust during cutting, drilling, and grinding (NIOSH 2024). Wear chemical-resistant gloves (lime burns skin). Follow ANSI Z136.1 for laser safety, OSHA 29 CFR 1926.95 for PPE. For older concrete (pre-1980), test for asbestos – laser cleaning can release asbestos fibers. If asbestos is present, use wet methods or professional abatement.

FAQ

What is the typical laser cleaning rate (m2/hour) for concrete surfaces?
Concrete laser cleaning rates range from 1 m²/hour for thick multi-layer epoxy coatings to 10 m²/hour for light soot or carbonation deposits on dense, low-porosity surfaces — a 10× spread driven by contaminant absorption depth and pulse repetition rate. ASTM C94 ready-mix concrete surface preparation requirements and ICRI 310.2 surface profile standards define the post-clean condition target; most coating adhesion specs call for CSP 2–3 profile, achievable without abrasive cutting by selecting laser dwell times that volatilize contaminants without micro-roughening the paste matrix. Industrial floors with multi-layer coatings run 1–2 m²/hour; architectural concrete with surface discoloration reaches 8–10 m²/hour.
What wavelength, power, and pulse duration work best for cleaning concrete?
Concrete cleans most effectively at 1064 nm using a nanosecond fiber laser at 2.0–3.0 J/cm² — well below the 4.5 J/cm² paste-erosion threshold and the 5–6 J/cm² aggregate damage threshold documented for Portland cement concrete. At 100 W average power, 50 kHz repetition rate, and 1,000 mm/s cleaning speed with 50% pulse overlap, soot and biological growth lift in 3 passes without micro-roughening the paste matrix. High-strength concrete (50+ MPa compressive strength) has lower porosity and responds to a reduced setting of 2.0 J/cm²; architectural surfaces require tighter dwell control to meet ICRI 310.2 CSP 2–3 profile targets for coating adhesion.
Does laser cleaning concrete create hazardous dust, and how is it controlled?
Laser cleaning of concrete generates respirable crystalline silica — OSHA 29 CFR 1926.1153 sets a PEL of 50 µg/m³ (8-hour Time-weighted average (TWA)) for construction operations. OSHA confirms silicosis from crystalline silica exposure can be disabling or fatal in severe cases (OSHA Health 2024). Required controls are HEPA extraction at the source (H13 or H14 filter), P100 minimum respiratory protection, and air monitoring for all dry concrete work. Pre-1980 concrete structures may also contain lead paint or asbestos aggregate — test substrates before cleaning and, if either is present, apply OSHA 29 CFR 1926.62 (lead) or 1926.1101 (asbestos) controls.
Does laser cleaning alter the surface profile or texture of concrete?
Laser cleaning at 2.0–2.5 J/cm² alters concrete surface profile measurably — carbon and biological deposit removal at this range slightly lowers Ra (surface roughness), while paste erosion above 3.0 J/cm² raises it. At 2.0–2.5 J/cm², carbon and biological deposits are removed with minimal paste loss, producing a surface profile near ICRI CSP 1–2 — acceptable for thin-film coatings. Above 3.0 J/cm², cement paste erodes faster than aggregate, exposing gravel and raising the profile toward CSP 3–4, which improves adhesion for thick epoxy systems but changes the aesthetic on architectural concrete.
Single-pass abrasive methods that cut both paste and aggregate uniformly produce a flatter profile; laser cleaning is preferred when preserving the original surface texture is the goal, as no material is cut and no secondary media require disposal.
What are Cal/OSHA limits for mineral particulate during laser cleaning?
Crystalline silica generated during concrete laser cleaning is regulated under Cal/OSHA Title 8 §5155 and the federal silica standards (29 CFR 1910.1053 / 1926.1153), which set a PEL of 50 µg/m³ TWA and an action level of 25 µg/m³ TWA for respirable quartz. Concrete's 15–25% silica aggregate content makes it a higher-exposure substrate than cement paste alone — cleaning at the aggregate interface generates respirable quartz, triggering mandatory air monitoring, a written exposure control plan, and P100 respiratory protection. HEPA extraction at the source is required; P100 filter minimum, powered air-purifying respirator (PAPR) for extended operations, per OSHA silica-crystalline guidance (osha.gov/silica-crystalline).

Technical Data

This material (highlighted)
Other materials in this group
Recommended fluence (2 J/cm²)

Literature process windows

Ablation windows at 1064 nm that map to Concrete in the laser-parameters reference. Screening values from published literature — validate on coupons before production.

Paint / graffiti on Concrete: process-window ratio unverified (F_damage NOT FOUND).
Compare machines for Paint / graffiti →

Laser-Material Interaction

Pulsed laser cleans concrete soot and biological growth at 2.0–3.0 J/cm² while the cement-aggregate interface defines the process ceiling — paste erosion begins at 4.5 J/cm², 1.3 J/cm² before aggregate damage. At 3.5 J/cm² the paste cleans; at 4.5 J/cm² it spalls while the aggregate holds at 5–6 J/cm², leaving exposed gravel. For architectural concrete, stay at 2.0–2.5 J/cm² with 4–5 passes at 1,000 mm/s to preserve surface texture. For industrial floors where exposed aggregate is acceptable, 3.0–3.5 J/cm² at wider spot size (1,000 µm) increases throughput. For graffiti, 3.0 J/cm² is effective — the kind of masonry-facade work a portable, chiller-free unit like the Han's Laser HC-PD 300, built for graffiti removal on masonry facades, is designed to reach at height; biological growth clears at 2.0 J/cm².

Laser-Material Interaction Sources(1 reference)

Standard Portland cement concrete (OPC, aggregate size 5-20 mm), room temperature (25°C), 1064 nm Nd:YAG laser, 7 ns pulse length, atmospheric pressure
P. P. — published research, DOI: 10.1016/S0143-8166(99)00078-5

Material Characteristics

Concrete's composite structure — cement paste binding sand and gravel aggregate — creates uneven absorption zones that make laser cleaning more nuanced than stone. High bulk 1064 nm absorption (90%) drives effective contaminant removal, but the cement-aggregate interface is a thermal stress point that must be respected with controlled cleaning speed. Three passes at 100 W and 1,000 mm/s remove soot, paint, and graffiti while keeping paste erosion minimal — preserving the surface texture that coating systems need for adhesion.

Material Characteristics Sources(1 reference)

Ordinary Portland cement concrete (OPC, aggregate size 5-20 mm), 1064 nm Nd:YAG laser, room temperature (25°C), pulse length 10 ns, atmospheric pressure
Pini. Pini, R., et al., Applied Surface Science, 2001, DOI: 10.1016/S0169-4332(01)00485-7

Technical Reference — Concreteliterature-sourced

Parameter	Value	Conditions / Source
Cleaning fluence range	1.8–7.0 J/cm² (±±0.2 J/cm²)	Concrete — soot, biological, and paint contamination · Construction and Building Materials, 2018
Damage threshold	7.0 J/cm²	Concrete, clean surface, 100ns pulse · Construction and Building Materials, 2018
Operating point (Z-Beam)	5.6 J/cm² (20% below ceiling)	Z-Beam safety standard · Z-Beam operational data
Cal/OSHA particulate PEL	5 mg/m³ TWA	California, mineral particulate (§5155) · Cal/OSHA Title 8, §5155

When Laser Cleaning Does Not Work

Condition	Consequence	Mitigation / Limit
Post-cleaning exposure to humidityHard stop	Efflorescence (calcium carbonate salts) may re-deposit	Apply hydrophobic sealant within 24 hours of cleaning
Ablation of Portland cement matrix or silica aggregateHard stop	Respirable crystalline silica generated — OSHA §1910.1053 applies	LEV + N95 minimum required

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

Contaminant	Cal/OSHA TWA/PEL	BAAQMD Permit	Note
Mineral Particulate (laser Ablation Dust)	0.025 mg/m³ TWA	Not required	LEV with HEPA filtration; P100 or N95 respiratory protection during active cleaning
