Unimog Parts Laser Cleaning kcnq4fnS
Laser cleaning removes rust, oil residue, and old paint from Unimog axle housings, gearboxes, and chassis brackets without grinding or chemical stripping. The beam strips corrosion from cast iron differential housings and steel drive shafts down to bare substrate, the same approach shops use on cast iron laser cleaning and steel laser cleaning jobs. It won't reshape bent brackets, replace worn bushings, or restore threads stripped by corrosion, since those repairs need machining or welding first. The method fits restoration work close to what shows up in automotive EV laser cleaning shops, prepping portal axle covers and undercarriage brackets for paint where abrasive blasting would eat into tight tolerances.
What This Video Shows

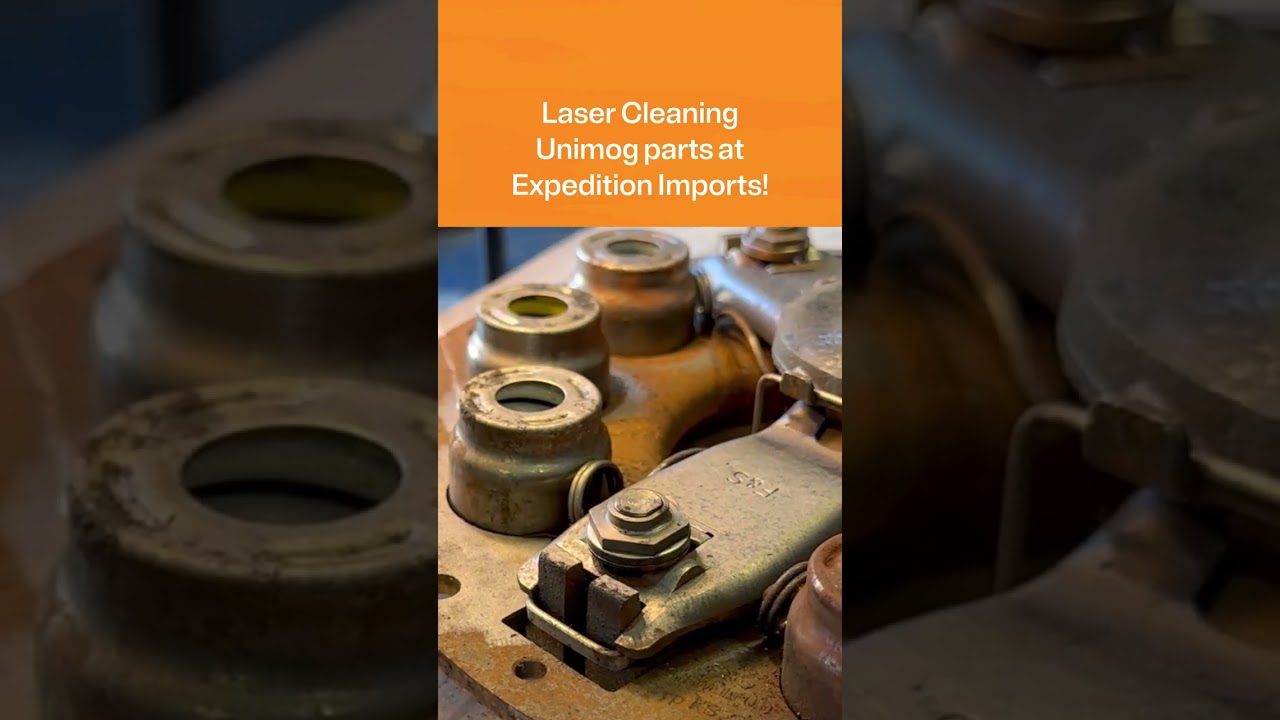

Short kcnq4fnSftE shows pulsed laser clearing paint, rust, and grime from Unimog steel parts in 58 seconds without chemicals.
Metals and polymers found in Unimog parts
Stainless Steel 316 Laser Cleaning
Laser cleaning burns off the dark heat marks that welding and grinding leave on 316 stainless, so the metal looks clean again without any chemical dip or sanding. It does not finis...
Cast Iron Laser Cleaning
Gray and ductile cast iron keep graphite in the matrix. That graphite is supposed to stay there. Rust and foundry scale can come off with a dry laser pass when a copied steel setti...
Steel Laser Cleaning
Laser cleaning removes rust, mill scale, and weld discoloration from steel without media, holding fluence near a 1.5 J/cm² cleaning floor and stopping short of the 4.5 J/cm² mark t...
Zinc Laser Cleaning
Zinc shows up as die-cast parts, rolled sheet, and galvanized coatings. A pulsed laser can take native oxide and white rust off the face when energy stays inside a gentle range for...
Related contaminants
Iron oxide rust
Laser cleaning removes iron oxide rust from steel down to bare metal without grinding wheels, abrasive blasting, or chemical strippers. The beam ablates the oxide layer while leaving sound steel underneath intact, so a part keeps its original dimension and surface finish through the pass. It will not reverse pitting the rust already caused, repair corrosion damage done to the substrate, or clear a part in one blanket setting; rust depth and iron oxide type both change how many passes a shop needs before the surface is ready for inspection.
Mill scale and magnetite
Laser cleaning fractures the bluish-black magnetite laminate off carbon steel in repeated passes, because mill scale runs roughly four times harder than the plate underneath it. A hot-rolled plate carrying this scale typically needs four or more passes to reach bare metal, while a lighter rust bloom on the same yard stock can clear in one or two. It will not strip in a single rust-grade pass, will not raise the surface to a deep abrasive-blast anchor profile some coating specs still call for, and will not reverse pitting that was already hiding under the scale.
Oxide scale
Laser cleaning removes the chromium-oxide and titanium-oxide scale that post-weld and post-anneal heat treatment grows on stainless steel, titanium, and Inconel, clearing the film without a chemical pickling bath. It will not rebuild the chromium that heat already pulled out of the grain boundaries beneath a dark heat-treated color, will not fix titanium alpha case that has already let oxygen diffuse deep into the metal, and will not stop the bare surface from re-oxidizing once it goes back into service heat.
Paint and coatings
Requires matching the paint system and substrate pairing before setting energy, because a thin single topcoat on [steel](/materials/steel-laser-cleaning) clears at a fraction of the fluence a multilayer primer stack on [aluminum](/materials/aluminum-laser-cleaning) needs, and the substrate sets its own ceiling once the coating is gone. Paint sits as an applied, cross-linked polymer film bonded by mechanical keying and resin adhesion, not a corrosion product, so pigment load and binder chemistry decide more of the setting than the substrate alone. A surface-integrity study on laser-cleaned aluminum alloy carrying a paint layer documents that a visually bare finish does not by itself confirm the metal underneath escaped the pass undamaged (Applied Optics, 2024).
Organic grease and oil
Laser cleaning decomposes mineral oil, synthetic lubricant, and machine grease off steel, aluminum, and stainless steel through fast thermal breakdown of the hydrocarbon film, the same damage-threshold logic that broader laser-cleaning threshold research has documented across very different host materials (Journal of Cultural Heritage, 2000). It is not a substitute for a wet alkaline line degreasing a full rack of parts at once, and it will not clear a bonded hard coating or a thick paint stack sitting on top of the oil.
